1N4764A Datasheet | DC COMPONENTS

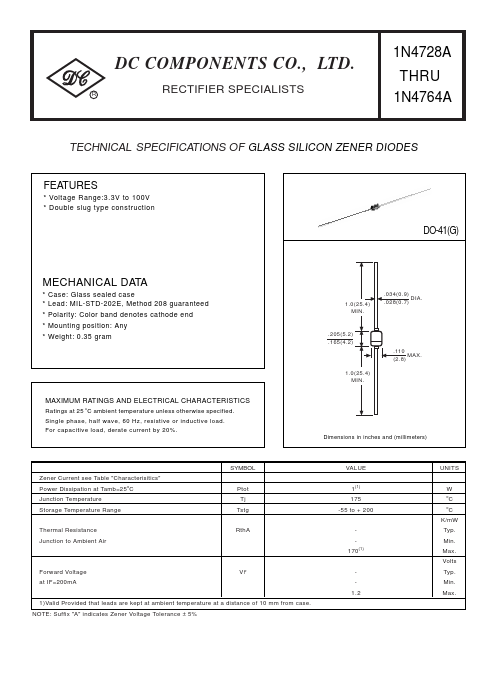

DC PONENTS CO., LTD. RECTIFIER SPECIALISTS 1N4728A THRU 1N4764A TECHNICAL SPECIFICATIONS OF GLASS SILICON ZENER DIODES Features - Voltage Range:3.3V to 100V - Double slug type construction DO-41(G) MECHANICAL DATA - Case: Glass sealed case - Lead: MIL-STD-202E, Method 208 guaranteed - Polarity: Color band denotes cathode end - Mounting position: Any - Weight: 0.35 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. 1.0(25.4) MIN. .034(0.9) DIA. .028(0.7) .205(5.2) .165(4.2) 1.0(25.4) MIN. .110...
