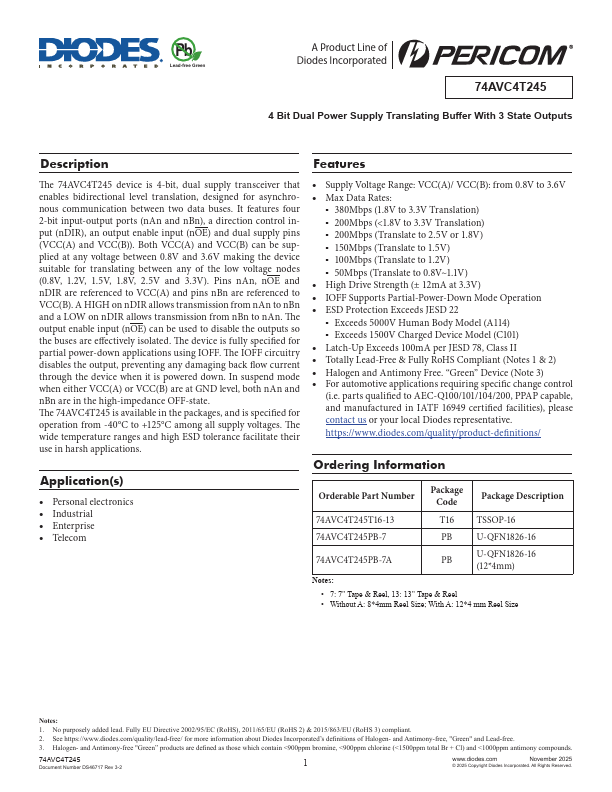

74AVC4T245 - 4-Bit Dual Power Supply Translating Buffer

Features

  • The 74AVC4T245 device is 4-bit, dual supply transceiver that enables bidirectional level translation, designed for asynchronous communication between two data buses. It features four 2-bit input-output ports (nAn and nBn), a direction control input (nDIR), an output enable input (nOE) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8V and 3.6V making the device suitable for translating between any of the low voltage nodes (0.8V, 1.2V, 1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74AVC4T245 4-bit dual supply translating transceiver NXP Semiconductors
74AVC4T245 4-bit dual supply translating transceiver nexperia
74AVC4T245-Q100 4-bit dual supply translating transceiver nexperia
74AVC4T245Q Automotive 4-Bit Dual-Supply Translating Transceiver SG Micro
74AVC4T3144 4-bit dual-supply buffer/level translator nexperia

Other Datasheets by Diodes Incorporated

Part Number Description
74AVC1T45 SINGLE BIT DUAL POWER SUPPLY TRANSLATING TRANSCEIVER
74AVCH1T45 SINGLE BIT DUAL POWER SUPPLY TRANSLATING TRANSCEIVER
74AHC00 QUADRUPLE 2-INPUT NAND GATES
74AHC00S14 QUADRUPLE 2-INPUT NAND GATES
74AHC00T14 QUADRUPLE 2-INPUT NAND GATES

Full PDF Text Transcription

Click to expand full text

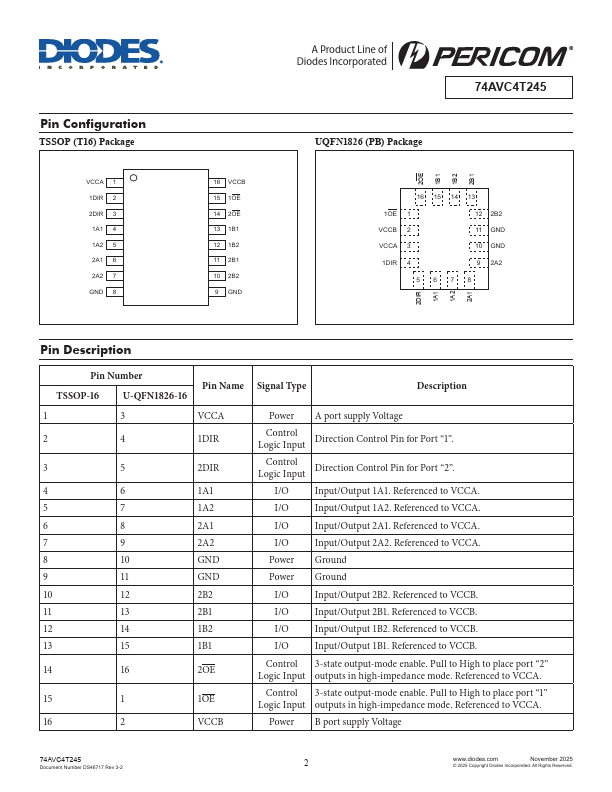

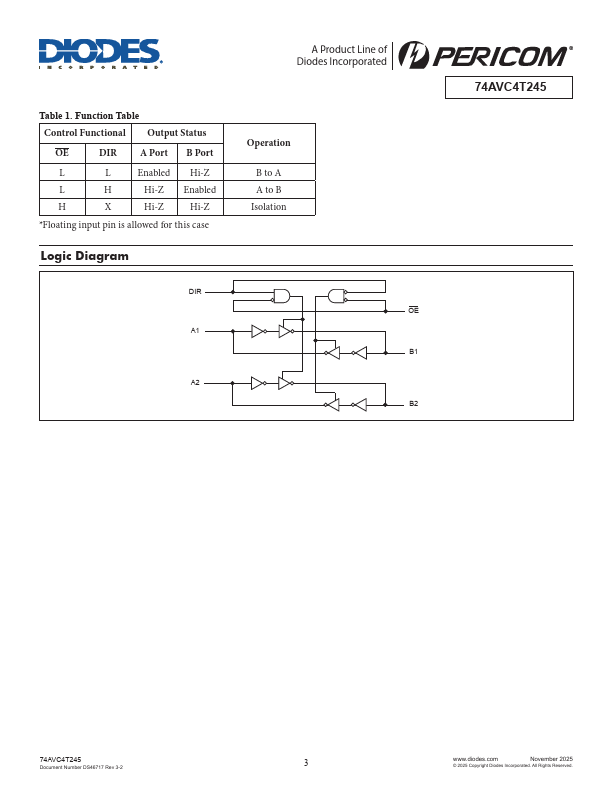

Pb Lead-free Green A Product Line of Diodes Incorporated 74AVC4T245 4 Bit Dual Power Supply Translating Buffer With 3 State Outputs Description Features The 74AVC4T245 device is 4-bit, dual supply transceiver that enables bidirectional level translation, designed for asynchronous communication between two data buses. It features four 2-bit input-output ports (nAn and nBn), a direction control input (nDIR), an output enable input (nOE) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8V and 3.6V making the device suitable for translating between any of the low voltage nodes (0.8V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V). Pins nAn, nOE and nDIR are referenced to VCC(A) and pins nBn are referenced to VCC(B).
