AP7375 - 300mA ULDO REGULATOR

Datasheet Summary

Description

The AP7375 series is a wide input voltage range (45V), low quiescent current (2.1μA), low-dropout linear regulator (LDO) able to provide 300mA load current.

The AP7375 family of LDOs offers an EN pin that takes an input voltage of 45V to enable and disable the LDO output.

Features

  • very fast response times against line voltage transient and load current transient, and ensures no overshoot voltage during start-up and short-circuit recovery. It also features integrated short-circuit and thermal shutdown protection. The AP7375 has 1.8V, 3.0V, 3.3V, 3.6V, and 5.0V fixed output voltage versions, and is available in the SOT23, SOT25, SOT89, and U-DFN2020-6 (SWP) (Type UXC) packages. Features.
  • Wide Input Voltage Range: 3V to 45V.
  • Maximum Output Current: 300mA.

📥 Download Datasheet

Datasheet preview – AP7375

Datasheet Details

Part number AP7375
Manufacturer DIODES
File Size 1.24 MB
Description 300mA ULDO REGULATOR
Datasheet download datasheet AP7375 Datasheet
Additional preview pages of the AP7375 datasheet.

📁 Similar Datasheet

  • AP730P - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP730P-HF-3 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP7335 - Fast Transient Low Dropout Linear Regulator (Diodes Incorporated)
  • AP7350Q - High Power LED Driver IC (AP Semiconductor)
  • AP7365 - Fast Transient Low Dropout Linear Regulator (Diodes Incorporated)
  • AP73T02GH-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP73T02GJ-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP73T02GJB - N-CHANNEL INSULATED GATE BIPOLAR TRANSISTOR (Advanced Power Electronics)
  • AP73T03AGH-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP73T03AGM-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
Other Datasheets by DIODES
  • AP7375Q - 300mA ULDO REGULATOR
  • AP7370 - 300mA ULDO REGULATOR
  • AP7372 - 200mA ULDO REGULATOR
  • AP7311 - Fast Transient Low Dropout Linear Regulator
  • AP7312 - DUAL 150mA LOW QUIESCENT CURRENT FAST TRANSIENT LOW DROPOUT LINEAR REGULATOR
  • AP7313 - Fast Transient Low Dropout Linear Regulator
  • AP7315 - 150mA HIGH PSRR LOW NOISE LDO
  • AP7315Q - AUTOMOTIVE COMPLIANT 150mA HIGH PSRR LOW NOISE LDO

Full PDF Text Transcription

Click to expand full text

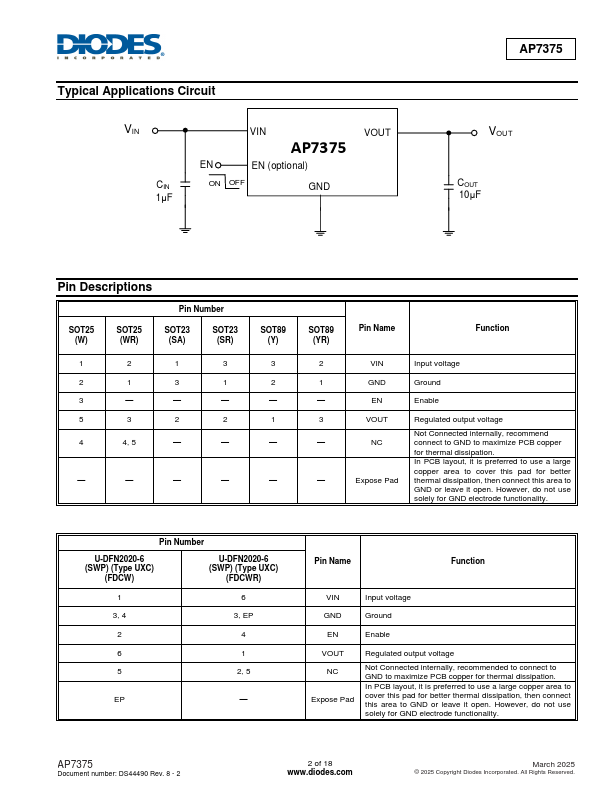

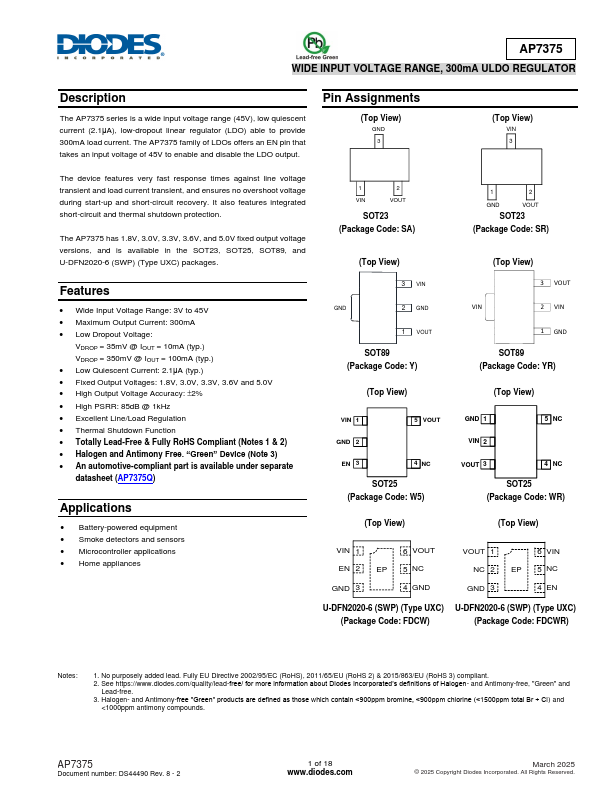

AP7375 WIDE INPUT VOLTAGE RANGE, 300mA ULDO REGULATOR Description The AP7375 series is a wide input voltage range (45V), low quiescent current (2.1μA), low-dropout linear regulator (LDO) able to provide 300mA load current. The AP7375 family of LDOs offers an EN pin that takes an input voltage of 45V to enable and disable the LDO output. Pin Assignments (Top View) GND 3 (Top View) VIN 3 The device features very fast response times against line voltage transient and load current transient, and ensures no overshoot voltage during start-up and short-circuit recovery. It also features integrated short-circuit and thermal shutdown protection. The AP7375 has 1.8V, 3.0V, 3.3V, 3.6V, and 5.
