BAV99BRW Datasheet | Diodes Incorporated

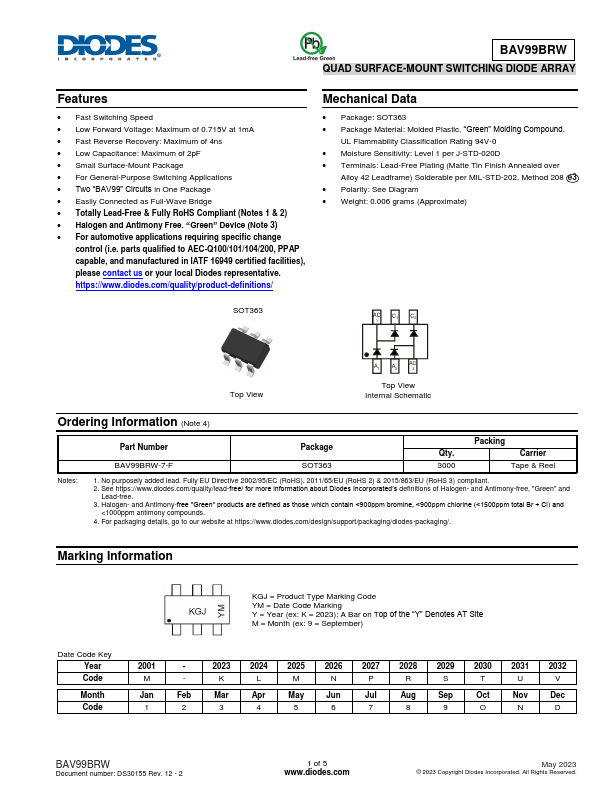

Features - Fast Switching Speed - Low Forward Voltage: Maximum of 0.715V at 1m A - Fast Reverse Recovery: Maximum of 4ns - Low Capacitance: Maximum of 2p F - Small Surface-Mount Package - For General-Purpose Switching Applications - Two “BAV99” Circuits in One Package - Easily Connected as Full-Wave Bridge - Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2) - Halogen and Antimony Free. “Green” Device (Note 3) - For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://.diodes./quality/product-definitions/ Mechanical Data - Package: SOT363 - Package Material: Molded Plastic, “Green” Molding pound. UL Flammability Classification Rating 94V-0 - Moisture Sensitivity: Level 1 per J-STD-020D - Terminals: Lead-Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe) Solderable per MIL-STD-202, Method 208 e3 - Polarity: See Diagram - Weight: 0.006 grams (Approximate) SOT363 C1 C2 Top View A1 A2 Top View Internal Schematic Ordering Information (Note 4) Notes: Part Number BAV99BRW-7-F Package SOT363 Qty. 3000 Packing Carrier Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro HS), 2011/65/EU (Ro HS 2) & 2015/863/EU (Ro HS 3) pliant. 2. See https://.diodes./quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)...
