BC807-40

Manufacturer: Diodes Incorporated

BC807-40 datasheet by Diodes Incorporated.

This datasheet includes multiple variants, all published together in a single manufacturer document.

BC807-40 Datasheet Details

Part number	BC807-40
Datasheet	BC807-40 BC807-16 Datasheet (PDF)
File Size	245.85 KB
Manufacturer	Diodes Incorporated
Description	45V PNP SMALL SIGNAL TRANSISTOR

BC807-40 Overview

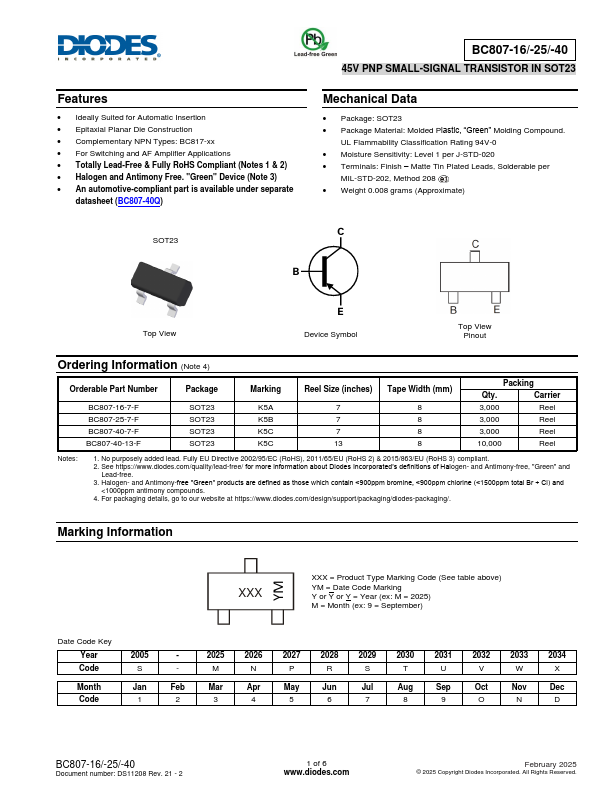

Features Ideally Suited for Automatic Insertion Epitaxial Planar Die Construction plementary NPN Types: BC817-xx For Switching and AF Amplifier Applications Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2) Halogen and Antimony Free. "Green" Device (Note 3) An automotive-pliant part is available under separate datasheet (BC807-40Q) BC807-16/-25/-40 45V PNP SMALL-SIGNAL TRANSISTOR IN SOT23 Package:.

BC807-40 Key Features

Ideally Suited for Automatic Insertion
Epitaxial Planar Die Construction
plementary NPN Types: BC817-xx
For Switching and AF Amplifier

BC807-40 from other manufacturers

View BC807-40 datasheet index

Part Number	Description	Other Manufacturers
BC807-40	PNP Transistor	INCHANGE
BC807-40	PNP Transistor	NXP
BC807-40	PNP Transistor	nexperia
BC807-40	PNP Transistor	Taiwan Semiconductor
BC807-40	PNP SILICON TRANSISTOR	UTC

More Datasheets from Diodes Incorporated

View all Diodes Incorporated datasheets

Part Number	Description
BC807-40W	45V PNP Transistor
BC807-16	45V PNP SMALL SIGNAL TRANSISTOR
BC807-16W	45V PNP SMALL SIGNAL TRANSISTOR
BC807-25	45V PNP SMALL SIGNAL TRANSISTOR
BC807-25W	45V PNP SMALL SIGNAL TRANSISTOR
BC817-16Q	45V NPN SMALL SIGNAL TRANSISTOR
BC817-25Q	45V NPN SMALL SIGNAL TRANSISTOR
BC817-40Q	45V NPN SMALL SIGNAL TRANSISTOR
BC846A	NPN SMALL SIGNAL TRANSISTOR
BC846AS	65V DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
