BC857BQ - PNP SMALL-SIGNAL TRANSISTOR

Download the BC857BQ datasheet PDF. This datasheet also covers the BC856AQ variant, as both devices belong to the same pnp small-signal transistor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Ideally Suited for Automatic Insertion.
  • Complementary NPN Types: BC846.
  • BC848 Family.
  • For Switching and AF Amplifier.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BC856AQ-DIODES.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BC857BQB 100mA PNP general-purpose transistor nexperia
BC857B PNP Transistor Multicomp
BC857B PNP Silicon Epitaxial Transistors Kingtronics
BC857B PNP Transistor GME
BC857B Silicon PNP transistor BLUE ROCKET ELECTRONICS

Other Datasheets by Diodes Incorporated

Part Number Description
BC857B PNP SMALL SIGNAL TRANSISTOR
BC857BFA 45V PNP SMALL SIGNAL TRANSISTOR
BC857BFZ 45V PNP SMALL SIGNAL TRANSISTOR
BC857BLP4 45V PNP SMALL SIGNAL TRANSISTOR
BC857BS DUAL PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Full PDF Text Transcription

Click to expand full text

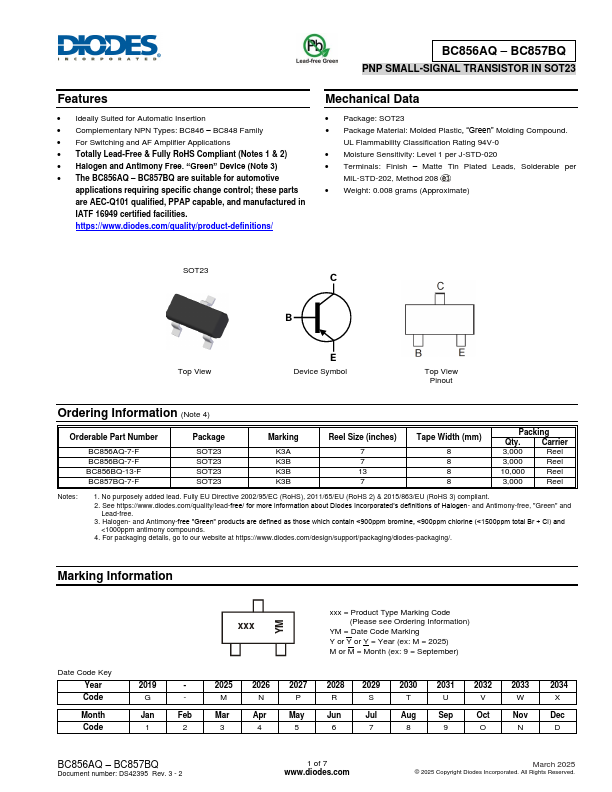

BC856AQ – BC857BQ PNP SMALL-SIGNAL TRANSISTOR IN SOT23 Features • Ideally Suited for Automatic Insertion • Complementary NPN Types: BC846 – BC848 Family • For Switching and AF Amplifier Applications • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • The BC856AQ – BC857BQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/ Mechanical Data • Package: SOT23 • Package Material: Molded Plastic, “Green” Molding Compound.
