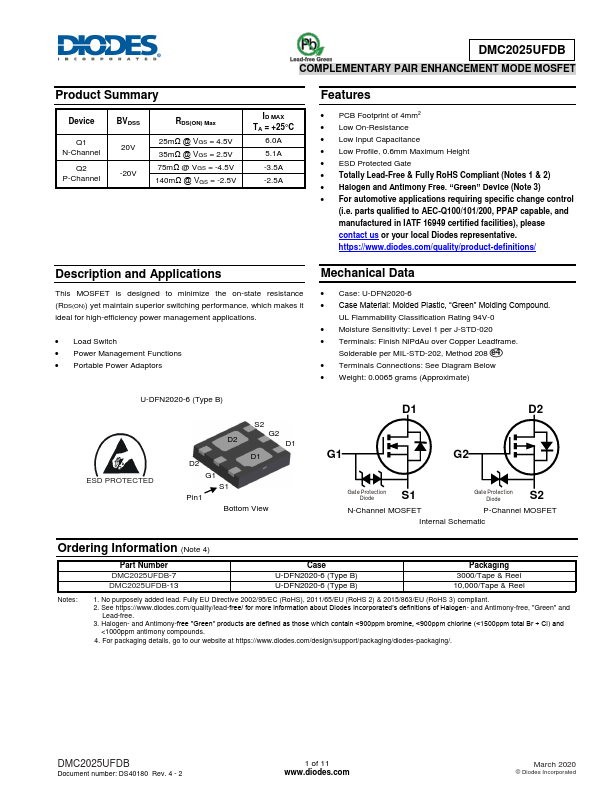

Datasheet Summary
PLEMENTARY PAIR ENHANCEMENT MODE MOSFET

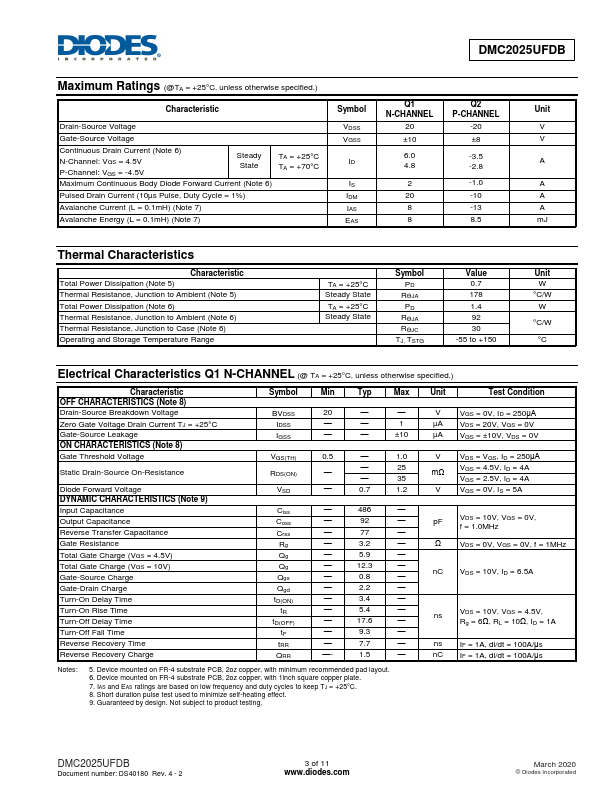

Product Summary
Device
Q1 N-Channel
Q2 P-Channel
BVDSS 20V -20V
RDS(ON) Max
25mΩ @ VGS = 4.5V 35mΩ @ VGS = 2.5V 75mΩ @ VGS = -4.5V 140mΩ @ VGS = -2.5V
ID MAX TA = +25°C
6.0A 5.1A -3.5A -2.5A
Features
- PCB Footprint of 4mm2
- Low On-Resistance
- Low Input Capacitance
- Low Profile, 0.6mm Maximum Height
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your...
