DMP2024UFDF - 20V P-CHANNEL ENHANCEMENT MODE MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.

Battery management applications Power-management functions DC-DC converters U-DFN2020-6

Features

  • 0.6mm Profile.
  • Ideal for Low Profile.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMP2022LSS-13 P-Channel 20V MOSFET VBsemi
DMP2012SN P-Channel MOSFET Diodes Incorporated
DMP21D5UFB4 P-Channel MOSFET Diodes Incorporated
DMP2305UQ-7 P-Channel MOSFET VBsemi
DMP-BD755P Blu-ray Disc Player Service Manual Panasonic

Other Datasheets by Diodes Incorporated

Part Number Description
DMP2021UFDE P-Channel MOSFET
DMP2021UFDF P-Channel MOSFET
DMP2021UTS P-CHANNEL MOSFET
DMP2022LSS single P-Channel MOSFET
DMP2022LSSQ P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

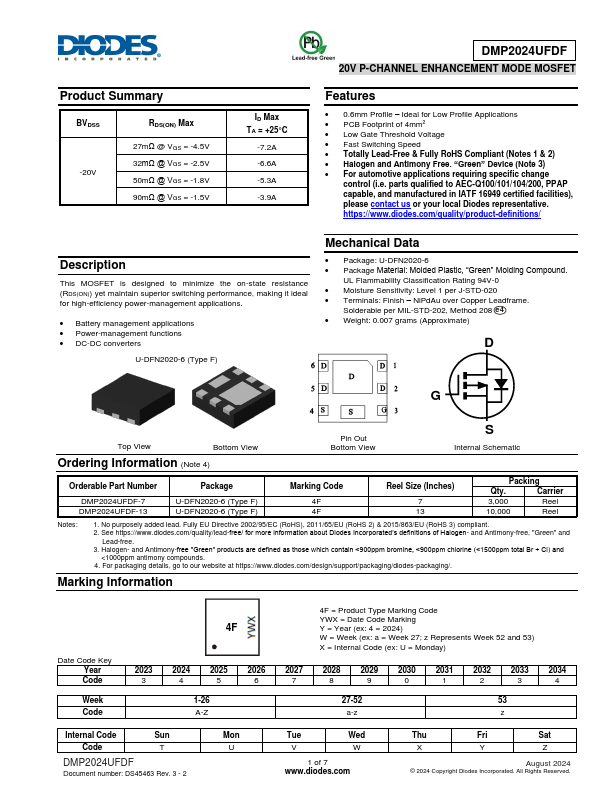

Product Summary BVDSS -20V RDS(ON) Max 27mΩ @ VGS = -4.5V 32mΩ @ VGS = -2.5V 50mΩ @ VGS = -1.8V 90mΩ @ VGS = -1.5V ID Max TA = +25°C -7.2A -6.6A -5.3A -3.9A DMP2024UFDF 20V P-CHANNEL ENHANCEMENT MODE MOSFET Features • 0.6mm Profile – Ideal for Low Profile Applications • PCB Footprint of 4mm2 • Low Gate Threshold Voltage • Fast Switching Speed • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.
