DXTP78060DFG - 60V PNP ULTRA-LOW VCE TRANSISTOR

Features

  • BVCEO > -60V.
  • BVEBO > -8V.
  • Continuous Current IC to -4.5A.
  • Peak Pulse Current ICM to -10A.
  • Ultra-Low Saturation Voltage VCE(sat) < -65mV @ -1A.
  • High Current RCE(sat) = 42mΩ Typical.
  • Small Form Factor Thermally Efficient Package Enables Higher Density End Products.
  • Wettable Flank for Improved Optical Inspection.
  • Rated to +175°C.
  • Ideal for High-Temperature Environments.
  • Complementary NPN Type: DXTN7.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DXT2222A NPN Transistor Dc Components
DXT2907A NPN Transistor Dc Components
DXT3904 NPN Transistor Dc Components
DXT3906 NPN Transistor Dc Components
DXT5401 NPN Transistor Dc Components

Other Datasheets by Diodes Incorporated

Part Number Description
DXTP03200BP5 200V PNP HIGH VOLTAGE TRANSISTOR
DXTP07025BFG 25V PNP HIGH PERFORMANCE TRANSISTOR
DXTP07025BFGQ 25V PNP LOWSAT TRANSISTOR
DXTP07040CFG 40V PNP TRANSISTOR
DXTP07060BFG 60V PNP HIGH PERFORMANCE TRANSISTOR

Full PDF Text Transcription

Click to expand full text

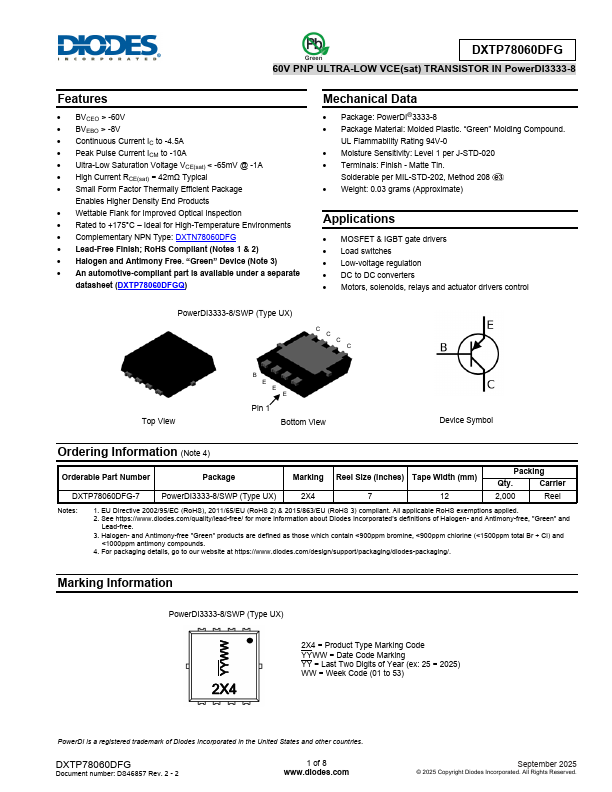

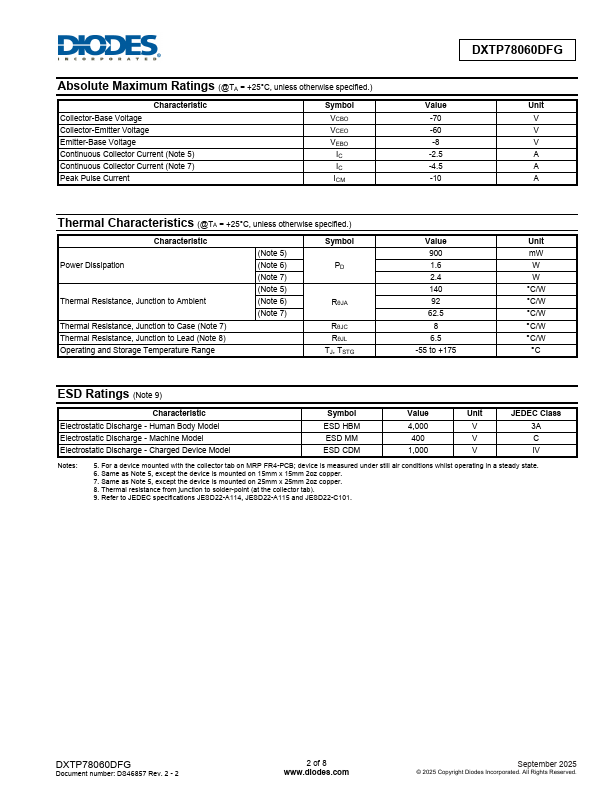

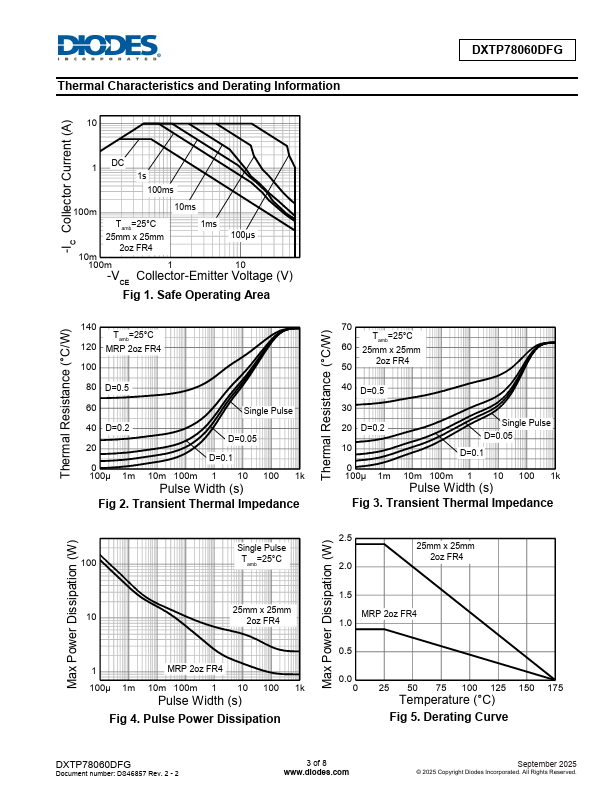

DXTP78060DFG Green 60V PNP ULTRA-LOW VCE(sat) TRANSISTOR IN PowerDI3333-8 Features • BVCEO > -60V • BVEBO > -8V • Continuous Current IC to -4.5A • Peak Pulse Current ICM to -10A • Ultra-Low Saturation Voltage VCE(sat) < -65mV @ -1A • High Current RCE(sat) = 42mΩ Typical • Small Form Factor Thermally Efficient Package Enables Higher Density End Products • Wettable Flank for Improved Optical Inspection • Rated to +175°C – Ideal for High-Temperature Environments • Complementary NPN Type: DXTN78060DFG • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • An automotive-compliant part is available under a separate datasheet (DXTP78060DFGQ) Mechanical Data • Package: PowerDI® 3333-8 • Package Material: Molded Plastic. “Green” Molding Compound.
