FMMT415 Datasheet NPN AVALANCHE TRANSISTOR

Manufacturer: Diodes Incorporated

FMMT415 npn avalanche transistor by Diodes Incorporated - Datasheet Preview

Datasheet Details

Part number	FMMT415
Manufacturer	Diodes Incorporated
File Size	522.36 KB
Description	NPN AVALANCHE TRANSISTOR
Download	FMMT415 Download (PDF)

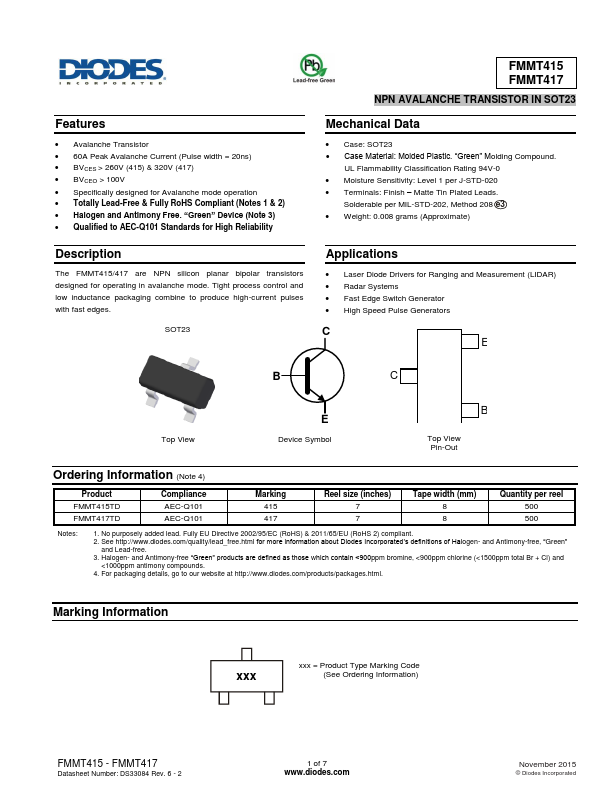

General Description

The FMMT415/417 are NPN silicon planar bipolar transistors designed for operating in avalanche mode.

Tight process control and low inductance packaging combine to produce high-current pulses with fast edges.

SOT23 Applications  Laser Diode Drivers for Ranging and Measurement (LIDAR)  Radar Systems  Fast Edge Switch Generator  High Speed Pulse Generators C E B C Top View E Device Symbol B Top View Pin-Out Ordering Information (Note 4) Product FMMT415TD FMMT417TD Compliance AEC-Q101 AEC-Q101 Marking 415 417 Reel size (inches) 7 7 Tape width (mm) 8 8 Quantity per reel 500 500 Notes: 1.

Key Features

Avalanche Transistor.
60A Peak Avalanche Current (Pulse width = 20ns).
BVCES > 260V (415) & 320V (417).
BVCEO > 100V.
Specifically designed for Avalanche mode operation.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability FMMT415 FMMT417 NPN.
