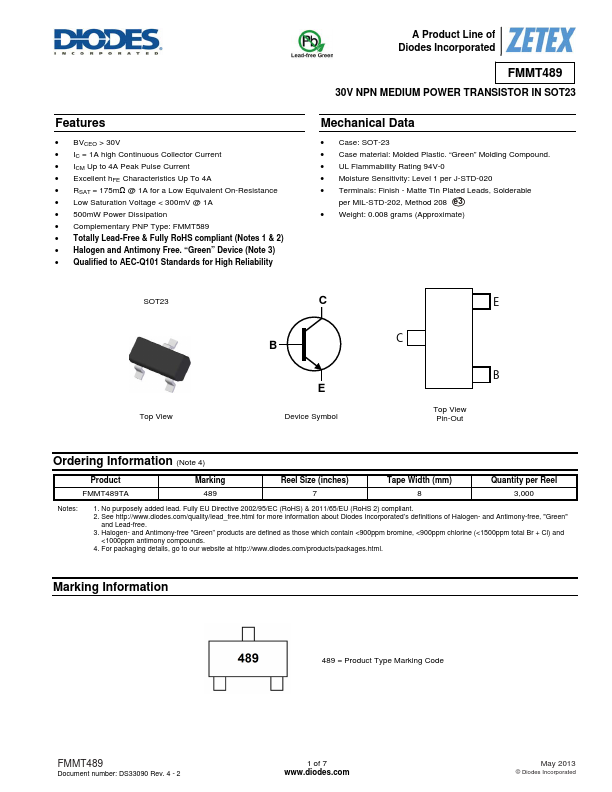

FMMT489 Datasheet 30V NPN MEDIUM POWER TRANSISTOR

Manufacturer: Diodes Incorporated

📥 Download Datasheet

FMMT489 30v npn medium power transistor by Diodes Incorporated - Datasheet Preview

Datasheet Details

Part number	FMMT489
Manufacturer	Diodes Incorporated
File Size	233.49 KB
Description	30V NPN MEDIUM POWER TRANSISTOR
Download	FMMT489 Download (PDF)

Key Features

BVCEO > 30V.
IC = 1A high Continuous Collector Current.
ICM Up to 4A Peak Pulse Current.
Excellent hFE Characteristics Up To 4A.
RSAT = 175mΩ @ 1A for a Low Equivalent On-Resistance.
Low Saturation Voltage < 300mV @ 1A.
500mW Power Dissipation.
Complementary PNP Type: FMMT589.
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability A Pr.
