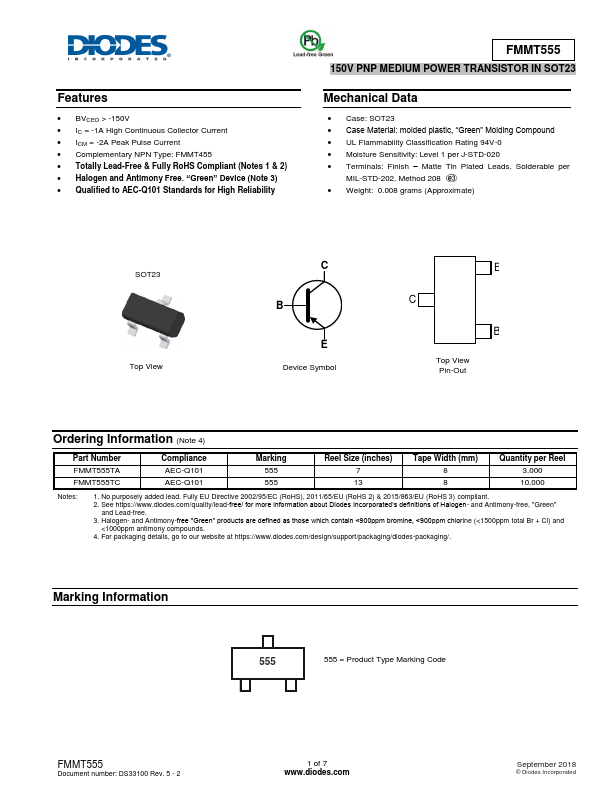

FMMT555
Features
- BVCEO > -150V
- IC = -1A High Continuous Collector Current
- ICM = -2A Peak Pulse Current
- plementary NPN Type: FMMT455
- Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- Qualified to AEC-Q101 Standards for High Reliability
150V PNP MEDIUM POWER TRANSISTOR IN SOT23
Mechanical Data
- Case: SOT23
- Case Material: molded plastic, ―Green‖ Molding pound
- UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish
- Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
- Weight: 0.008 grams (Approximate)
SOT23 Top View
Device Symbol
Top View Pin-Out
Ordering Information (Note 4)
Part Number FMMT555TA FMMT555TC pliance AEC-Q101 AEC-Q101
Marking 555 555
Reel Size (inches) 7 13
Tape Width (mm) 8 8
Quantity per Reel 3,000 10,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro HS), 2011/65/EU (Ro HS 2) & 2015/863/EU...
