FMMT589 Datasheet 30V PNP MEDIUM POWER HIGH PERFORMANCE TRANSISTOR

Manufacturer: Diodes Incorporated

📥 Download Datasheet

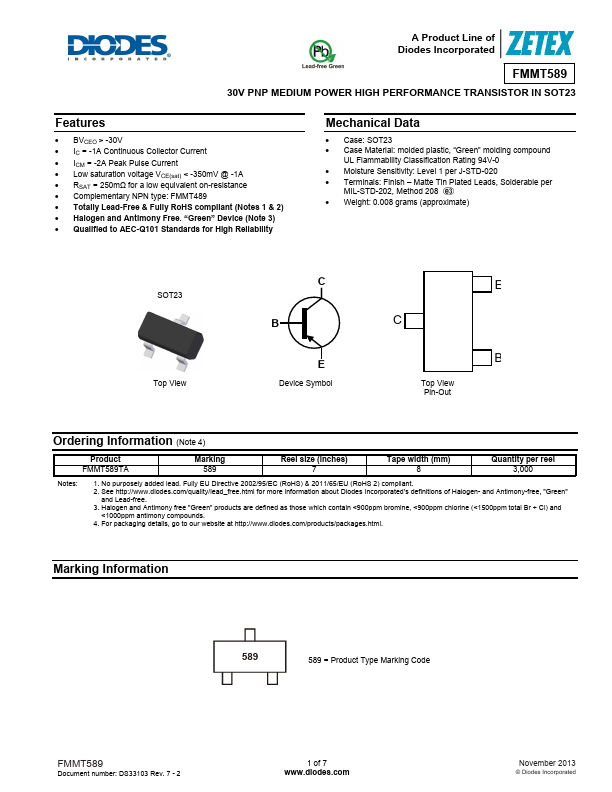

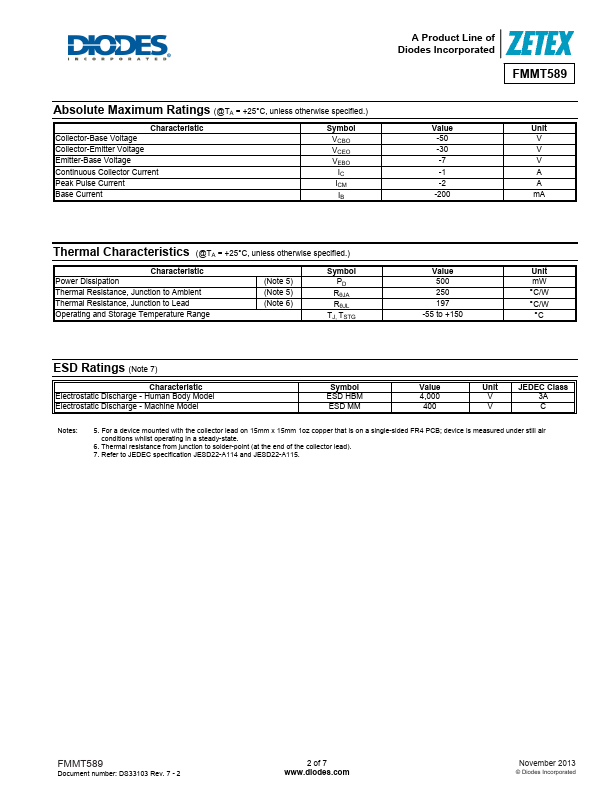

FMMT589 30v pnp medium power high performance transistor by Diodes Incorporated - Datasheet Preview

Datasheet Details

Part number	FMMT589
Manufacturer	Diodes Incorporated
File Size	682.20 KB
Description	30V PNP MEDIUM POWER HIGH PERFORMANCE TRANSISTOR
Download	FMMT589 Download (PDF)

Overview

A Product Line of Diodes Incorporated FMMT589 30V PNP MEDIUM POWER HIGH PERFORMANCE TRANSISTOR IN.

Key Features

BVCEO > -30V.
IC = -1A Continuous Collector Current.
ICM = -2A Peak Pulse Current.
Low saturation voltage VCE(sat) < -350mV @ -1A.
RSAT = 250mΩ for a low equivalent on-resistance.
Complementary NPN type: FMMT489.
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SOT23.
Case Material: molded plastic, “Green”.
