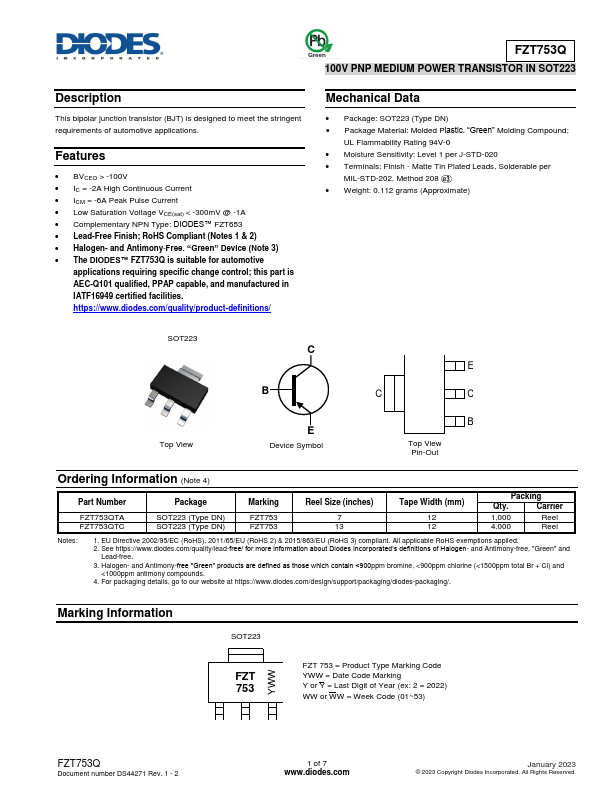

FZT753Q
FZT753Q is 100V PNP MEDIUM POWER TRANSISTOR manufactured by Diodes Incorporated.
Green
100V PNP MEDIUM POWER TRANSISTOR IN SOT223
Description
This bipolar junction transistor (BJT) is designed to meet the stringent requirements of automotive applications.
Features
- BVCEO > -100V
- IC = -2A High Continuous Current
- ICM = -6A Peak Pulse Current
- Low Saturation Voltage VCE(sat) < -300m V @ -1A
- plementary NPN Type: DIODES™ FZT653
- Lead-Free Finish; Ro HS pliant (Notes 1 & 2)
- Halogen- and Antimony-Free. “Green” Device (Note 3)
- The DIODES™ FZT753Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://.diodes./quality/product-definitions/
Mechanical Data
- Package: SOT223 (Type DN)
- Package Material: Molded Plastic. “Green” Molding pound;
UL Flammability Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish
- Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
- Weight: 0.112 grams (Approximate)
SOT223
Top View
Device Symbol
Top View Pin-Out
Ordering Information (Note 4)
Part Number
FZT753QTA FZT753QTC
Package...
