FZT949Q

Manufacturer: Diodes Incorporated

FZT949Q datasheet by Diodes Incorporated.

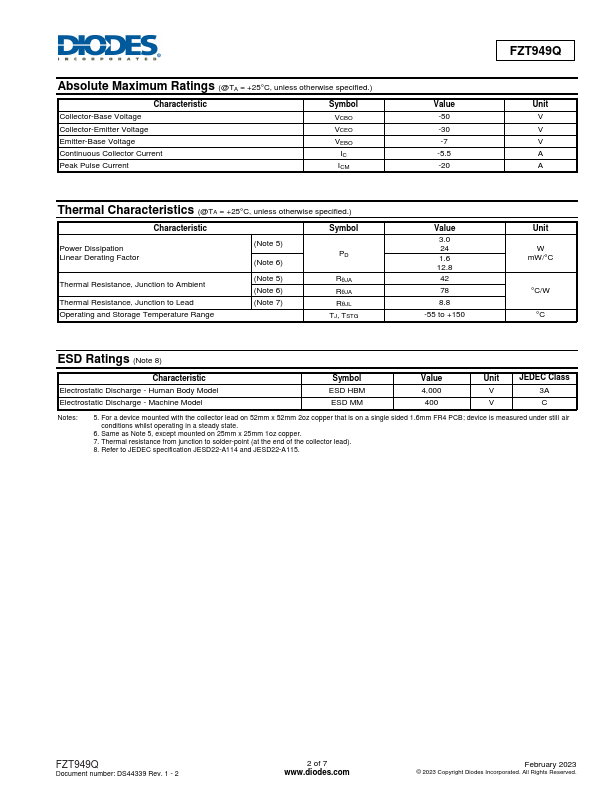

FZT949Q datasheet preview

FZT949Q Datasheet Details

Part number	FZT949Q
Datasheet	FZT949Q-DIODES.pdf
File Size	858.53 KB
Manufacturer	Diodes Incorporated
Description	30V PNP MEDIUM POWER TRANSISTOR

FZT949Q Overview

FZT949Q Green 30V PNP MEDIUM POWER TRANSISTOR IN SOT223.

FZT949Q Key Features

BVCEO > -30V
IC = -5.5A High Continuous Collector Current
IC = -20A Peak Pulse Current
Low Saturation Voltage VCE(sat) < -140mV @ -1A
hFE Specified up to -20A for a High Gain Hold-up
Lead-Free Finish; RoHS pliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The DIODES™ FZT949Q is suitable for automotive
