GBU4005 - 4.0A STANDARD RECOVERY BRIDGE RECTIFIER

Features

  • Glass Passivated Die Construction.
  • High Case Dielectric Strength of 1500VRMS.
  • Low Reverse Leakage Current.
  • Surge Overload Rating to 150A Peak.
  • Ideal for Printed Circuit Board.

📥 Download Datasheet

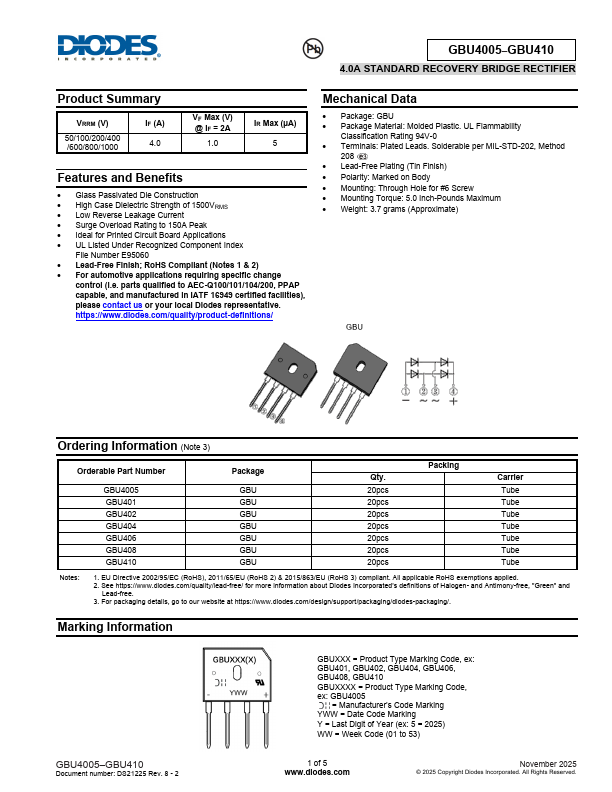

Datasheet preview – GBU4005

Datasheet Details

Part number GBU4005
Manufacturer Diodes Incorporated
File Size 316.81 KB
Description 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
Datasheet download datasheet GBU4005 Datasheet
Additional preview pages of the GBU4005 datasheet.

📁 Similar Datasheet

  • GBU4005 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers (Kingtronics)
  • GBU4005 - GLASS PASSIVATED CHIP SINGLE-PHASE BRIDGE RECTIFIER (First Silicon)
  • GBU4005 - 4.0 AMP Glass Passivated Bridge Rectifiers (SeCoS)
  • GBU4005 - Single-Phase 4.0A Glass Passivated Bridge Rectifier (SMC)
  • GBU4005 - 4.0A Single-Phase Bridge Rectifier (SEP ELECTRONIC)
  • GBU4005 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (UPM)
  • GBU4005 - 4A Miniature Glass Passivated Single-Phase Bridge Rectifiers (CITC)
  • GBU4005 - GLASS PASSIVATED BRIDGE RECTIFIERS (LITE-ON)
  • GBU4005 - Glass Passivated Bridge Rectifier (Eris)
  • GBU4005 - GLASS PASSIVATED BRIDGE RECTIFIERS (HY ELECTRONIC)
Other Datasheets by DIODES
  • GBU401 - 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
  • GBU402 - 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
  • GBU404 - 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
  • GBU406 - 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
  • GBU408 - 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
  • GBU410 - 4.0A STANDARD RECOVERY BRIDGE RECTIFIER
  • GBU2510 - 25A STANDARD RECOVERY BRIDGE RECTIFIER
  • GBU25JL - 25A LOW VF BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text
GBU4005–GBU410 4.0A STANDARD RECOVERY BRIDGE RECTIFIER Product Summary VRRM (V) 50/100/200/400 /600/800/1000 IF (A) 4.0 VF Max (V) @ IF = 2A 1.0 IR Max (µA) 5 Features and Benefits • Glass Passivated Die Construction • High Case Dielectric Strength of 1500VRMS • Low Reverse Leakage Current • Surge Overload Rating to 150A Peak • Ideal for Printed Circuit Board Applications • UL Listed Under Recognized Component Index File Number E95060 • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.
