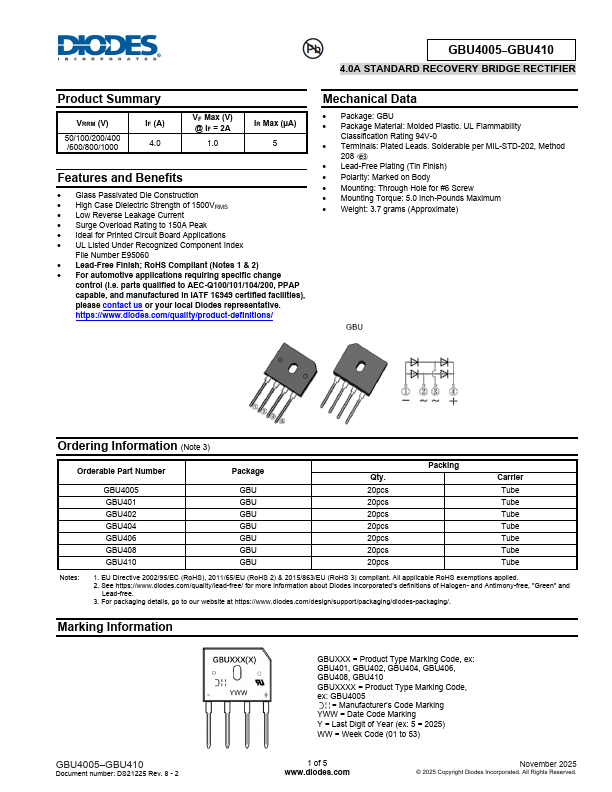

GBU402 Datasheet | Diodes Incorporated

Features and Benefits - Glass Passivated Die Construction - High Case Dielectric Strength of 1500VRMS - Low Reverse Leakage Current - Surge Overload Rating to 150A Peak - Ideal for Printed Circuit Board Applications - UL Listed Under Recognized ponent Index File Number E95060 - Lead-Free Finish; Ro HS pliant (Notes 1 & 2) - For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://.diodes./quality/product-definitions/ Mechanical Data - Package: GBU - Package Material: Molded Plastic. UL Flammability Classification Rating 94V-0 - Terminals: Plated Leads. Solderable per MIL-STD-202, Method - Lead-Free Plating (Tin Finish) - Polarity: Marked on Body - Mounting: Through Hole for #6 Screw - Mounting Torque: 5.0 Inch-Pounds Maximum - Weight: 3.7 grams (Approximate) Ordering Information (Note 3) Orderable Part Number GBU4005 GBU401 GBU402 GBU404 GBU406 GBU408 GBU410 Package GBU GBU GBU GBU GBU GBU GBU Qty. 20pcs 20pcs 20pcs 20pcs 20pcs 20pcs 20pcs Packing Carrier Tube Tube Tube Tube Tube Tube Tube Notes: 1. EU Directive 2002/95/EC (Ro HS), 2011/65/EU (Ro HS 2) & 2015/863/EU (Ro HS 3) pliant. All applicable Ro HS exemptions applied. 2. See https://.diodes./quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. For packaging details, go to our website at https://.diodes./design/support/packaging/diodes-packaging/. Marking Information GBU4005- GBU410 Document number: DS21225 Rev. 8 - 2 GBUXXX = Product Type Marking Code, ex: GBU401, GBU402, GBU404, GBU406, GBU408, GBU410 GBUXXXX = Product Type Marking Code, ex: GBU4005 = Manufacturer’s Code Marking YWW = Date Code Marking Y = Last Digit of Year (ex: 5 = 2025) WW = Week Code (01 to 53) 1 of 5...
