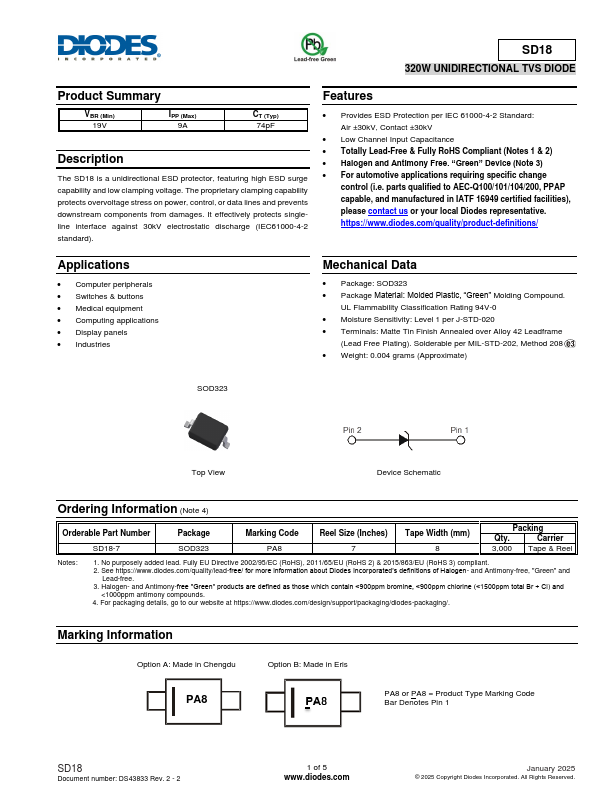

SD18 Key Features
- Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV
- Low Channel Input Capacitance
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- For automotive
- Part: SD18
- Manufacturer: Diodes Incorporated (official site)
- Size: 211.64 KB
Other SD18 Datasheets
| Manufacturer | Part Number | Description |
|---|---|---|
KD |
SD18 | STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY |
Kexin Semiconductor |
SD18 | TVS Diodes |
| UDF UDF |
SD18 | Unidirectional TVS Diode |
Cooper Electronic |
SD18-100 | Shielded Inductors |
| Cooper Electronic Technologies Cooper Electronic Technologies |
SD18-100 | (SD Series) High Power Density / Low Profile / Shielded Inductors |
SD18 Description
The SD18 is a unidirectional ESD protector, featuring high ESD surge capability and low clamping voltage. The proprietary clamping capability protects overvoltage stress on power, control, or data lines and prevents downstream ponents from damages. It effectively protects singleline interface against 30kV electrostatic discharge (IEC61000-4-2 standard).
