SDM05U30CP3 - 0.5A SCHOTTKY BARRIER DIODE

Description

The SDM05U30CP3 is a 30-volt 500mA Schottky Barrier Diode that is optimized for very-low-forward voltage drop and low-leakage current.

It’s housed in a compact Chip Scale Package (CSP) that occupies only 0.18mm2 board space.

Features

  • 0.18mm2 Footprint, Off Board Profile of 0.275mm.
  • Very-Low-Forward Voltage.
  • Minimizes Power Dissipation Losses.
  • Low Leakage.
  • Maximizes Battery Power.
  • Soft, Fast Switching Capability.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • For automotive.

📥 Download Datasheet

📁 Similar Datasheet

  • SDM029N06D - 60V N-Channel MOSFET (YUHONG)
  • SDM02M50DAE - 500V/2A three-phase full-bridge driver IPM (Silan Microelectronics)
  • SDM02M50DAS - 500V/2A three-phase full-bridge driver IPM (Silan Microelectronics)
  • SDM02M50DBE - 3 PHASE FULL-BRIDGE 500V/2A IPM (Silan Microelectronics)
  • SDM02M50DBS - 3 PHASE FULL-BRIDGE 500V/2A IPM (Silan Microelectronics)
  • SDM03C60DA2 - 600V/3A 3-PHASE FULL-BRIDGE DRIVER (Silan Semiconductors)
  • SDM03MT40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Diodes Incorporated)
  • SDM03MT40A - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Diodes Incorporated)
  • SDM03U40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Sunmate)
  • SDM03V60DA - 600V/3A 3-PHASE FULL-BRIDGE DRIVER (Silan Semiconductors)
Other Datasheets by DIODES

Full PDF Text Transcription

Click to expand full text

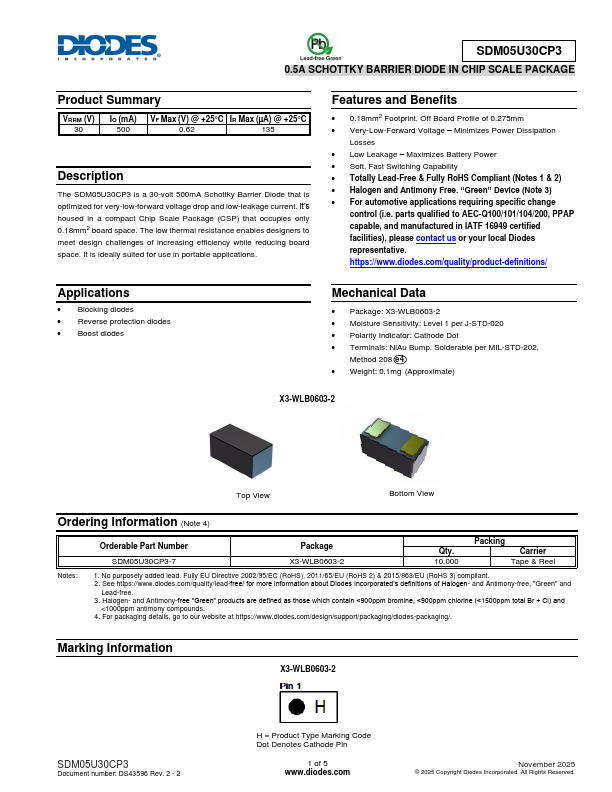

SDM05U30CP3 0.5A SCHOTTKY BARRIER DIODE IN CHIP SCALE PACKAGE Product Summary VRRM (V) 30 IO (mA) VF Max (V) @ +25°C IR Max (µA) @ +25°C 500 0.62 135 Description The SDM05U30CP3 is a 30-volt 500mA Schottky Barrier Diode that is optimized for very-low-forward voltage drop and low-leakage current. It’s housed in a compact Chip Scale Package (CSP) that occupies only 0.18mm2 board space. The low thermal resistance enables designers to meet design challenges of increasing efficiency while reducing board space. It is ideally suited for use in portable applications. Features and Benefits • 0.18mm2 Footprint, Off Board Profile of 0.
