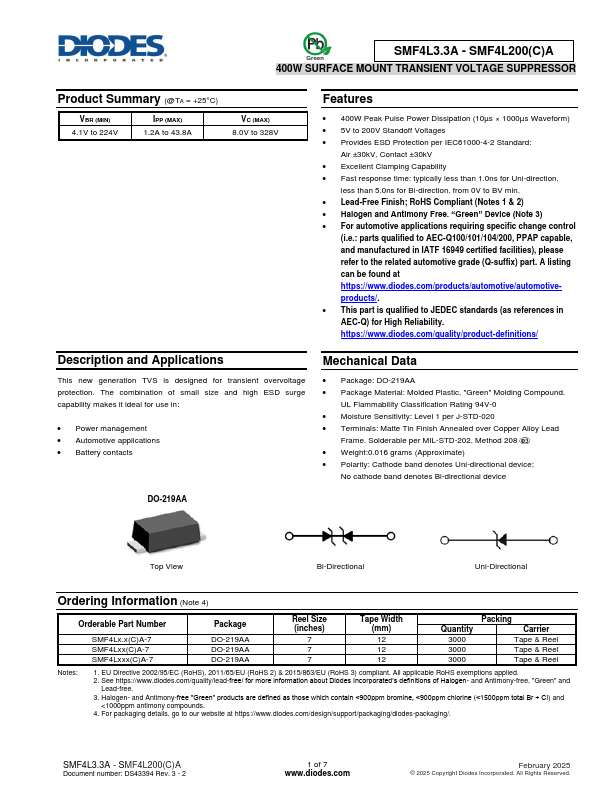

SMF4L10CA Description
and Applications This new generation TVS is designed for transient overvoltage protection. The bination of small size and high ESD surge capability makes it ideal for use in: Power management Automotive applications Battery contacts Package:.
SMF4L10CA Key Features
- 400W Peak Pulse Power Dissipation (10µs × 1000µs Waveform)
- 5V to 200V Standoff Voltages
- Provides ESD Protection per IEC61000-4-2 Standard
- Excellent Clamping Capability
- Fast response time: typically less than 1.0ns for Uni-direction
- Lead-Free Finish; RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- For automotive
SMF4L10CA Applications
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://.diodes./quality/product-definitions/
