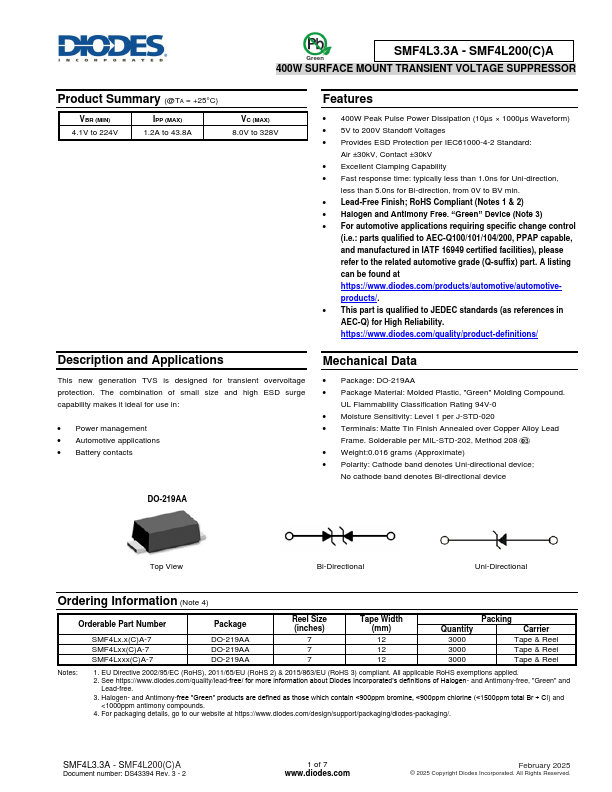

SMF4L7.0A Datasheet Text
SMF4L3.3A
- SMF4L200(C)A
Green
400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Product Summary (@TA = +25°C)
VBR (MIN) 4.1V to 224V
IPP (MAX) 1.2A to 43.8A
VC (MAX) 8.0V to 328V
Features
- 400W Peak Pulse Power Dissipation (10µs × 1000µs Waveform)
- 5V to 200V Standoff Voltages
- Provides ESD Protection per IEC61000-4-2 Standard:
Air ±30kV, Contact ±30kV
- Excellent Clamping Capability
- Fast response time: typically less than 1.0ns for Uni-direction, less than 5.0ns for Bi-direction, from 0V to BV min.
- Lead-Free Finish; RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- For automotive applications requiring specific change control
(i.e.: parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://.diodes./products/automotive/automotiveproducts/.
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://.diodes./quality/product-definitions/
Description and Applications
This new generation TVS is designed for transient overvoltage protection. The bination of small size and high ESD surge capability makes it ideal for use in:
- Power management
- Automotive applications
- Battery contacts
Mechanical Data
- Package: DO-219AA
- Package Material: Molded Plastic, "Green" Molding pound.
UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020...
