ZXTP2025F - 50V PNP MEDIUM POWER TRANSISTOR

Description

Advanced process capabilities and package design have been used to maximize the power handling and performance of this small outline transistor.

The compact size and ratings of this device make it ideally suited to applications where space is at a premium.

Package: SOT23

Features

  • BVCEO > -50V.
  • IC = -5A High Continuous Collector Current.
  • ICM = -10A Peak Pulse Current.
  • Low Saturation Voltage -60mV max @ IC = -1A.
  • RCE(sat) = 30mΩ.
  • 1.2W Power Dissipation.
  • Complimentary NPN Type: ZXTN2031F.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • For automotive.

📥 Download Datasheet

📁 Similar Datasheet

  • ZXTP2025F - PNP medium power transistor (Zetex Semiconductors)
  • ZXTP2027F - PNP medium power transistor (Zetex Semiconductors)
  • ZXTP2029F - PNP medium power transistor (Zetex Semiconductors)
  • ZXTP2006E6 - PNP LOW SAT MEDIUM POWER TRANSISTOR (Zetex Semiconductors)
  • ZXTP2008G - PNP LOW SATURATION TRANSISTOR (Zetex Semiconductors)
  • ZXTP2008Z - PNP LOW SATURATION MEDUIM POWER TRANSISTOR (Zetex Semiconductors)
  • ZXTP2009Z - PNP HIGH GAIN LOW SATURATION MEDIUM POWER TRANSISTOR (Zetex Semiconductors)
  • ZXTP2012A - PNP LOW SATURATION MEDIUM POWER TRANSISTOR (Zetex Semiconductors)
  • ZXTP2012G - PNP MEDIUM POWER LOW SATURATION TRANSISTOR (Zetex Semiconductors)
  • ZXTP2013G - PNP MEDIUM POWER LOW SATURATION TRANSISTOR (Zetex Semiconductors)
Other Datasheets by DIODES
  • ZXTP2008Z - 30V PNP POWER TRANSISTOR
  • ZXTP2012G - 60V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
  • ZXTP2012Z - 60V PNP LOW SATURATION MEDIUM POWER TRANSISTOR
  • ZXTP2013G - 100V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
  • ZXTP2014G - 140V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
  • ZXTP2041F - 40V PNP MEDIUM POWER TRANSISTOR
  • ZXTP25020CFF - PNP MEDIUM POWER TRANSISTOR
  • ZXTP25020CFH - 20V PNP LOW POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

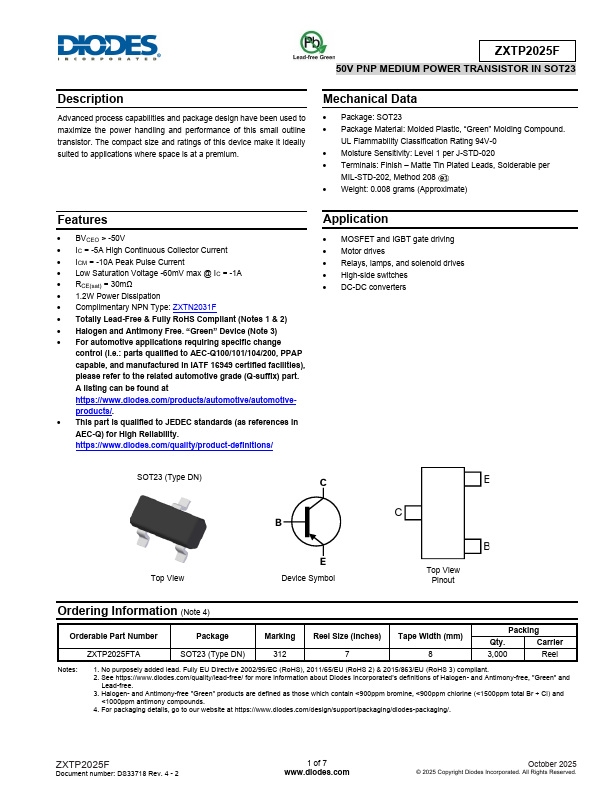

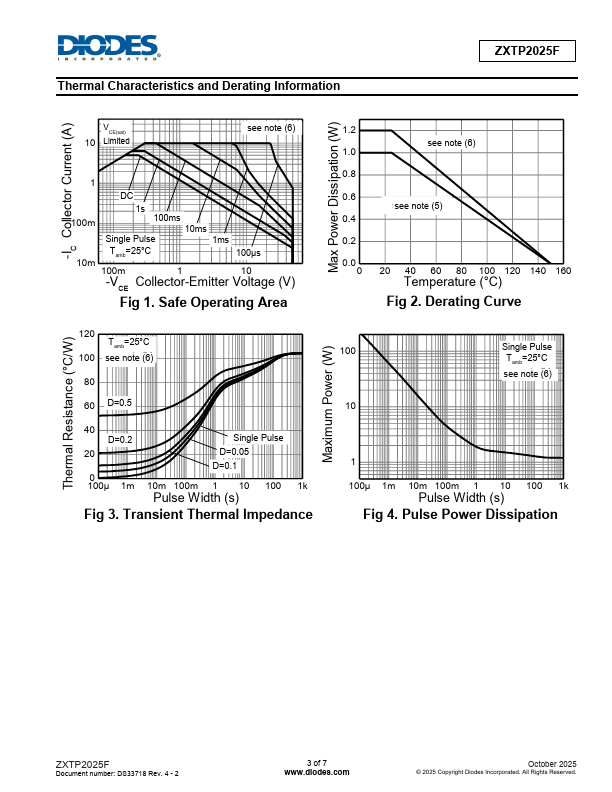

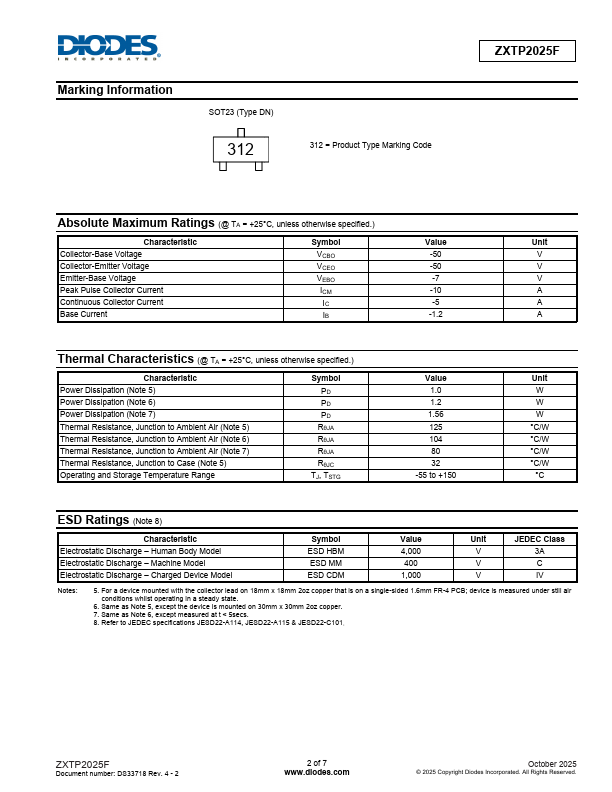

ZXTP2025F 50V PNP MEDIUM POWER TRANSISTOR IN SOT23 Description Advanced process capabilities and package design have been used to maximize the power handling and performance of this small outline transistor. The compact size and ratings of this device make it ideally suited to applications where space is at a premium. Mechanical Data • Package: SOT23 • Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 • Weight: 0.008 grams (Approximate) Features • BVCEO > -50V • IC = -5A High Continuous Collector Current • ICM = -10A Peak Pulse Current • Low Saturation Voltage -60mV max @ IC = -1A • RCE(sat) = 30mΩ • 1.
