Data Image FG0208F1DSSWDG01

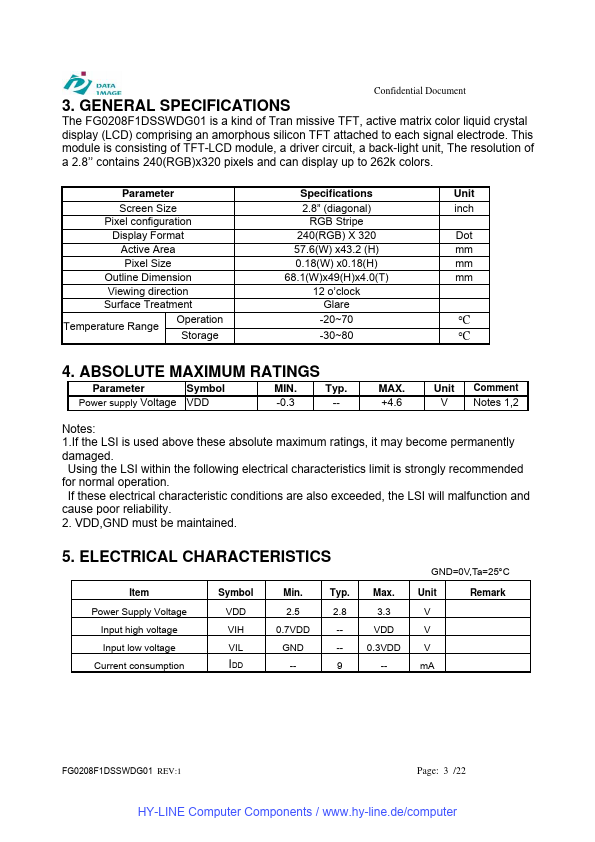

The FG0208F1DSSWDG01 is a kind of Tran missive TFT, active matrix color liquid crystal display (LCD) comprising an amorphous silicon TFT attached to each signal electrode. This module is consisting of TFT-LCD module, a driver circuit, a back-light unit, The resolution of a 2.8’’ contains 240(RGB)x320 pixels and can display up to 262k colors.| Part No. | FG0208F1DSSWDG01 |
|---|---|
| Datasheet | FG0208F1DSSWDG01 Download |
| Manufacturer |  Data Image |
| Description | TFT Module |
| Buy | Stock & Price |
ABSOLUTE MAXIMUM RATINGS
3 5.ELECTRICAL CHARACTERISTICS
3 6. PIN CONNECTIONS 4 7. BLOCK DIAGRAM 5 8. AC CHARACTERISTICS 6 9. OPTICALCHARACTERIST 13 10. INITIAL CODE FOR REFERENCE 15 11. QUALITY ASSURANCE 17 12. LCM PRODUCT LABEL DEFINE 18 13. PRECAUTIONS IN USE LCM 20 14. OUTLINE DRAWING 21 15 PACKAGE INFORMATION 22 Customer Companies R&D Dept. JACK Approved by Version: 1 Q.C. Dept. JOE Eng. Dept. GARY Prod.
