Data Image FG120150DSSWBG01
This module is designed for display units of Industrial Applications. The screen format is intended to support the XGA (1024(H) x 768(V)) screen and 262k (RGB 6-bits) or 16.2M color (RGB 8-bit data driver).| Part No. | FG120150DSSWBG01 |
|---|---|
| Datasheet | FG120150DSSWBG01 Download |
| Manufacturer |  Data Image |
| Description | TFT Module |
| Buy | Stock & Price |

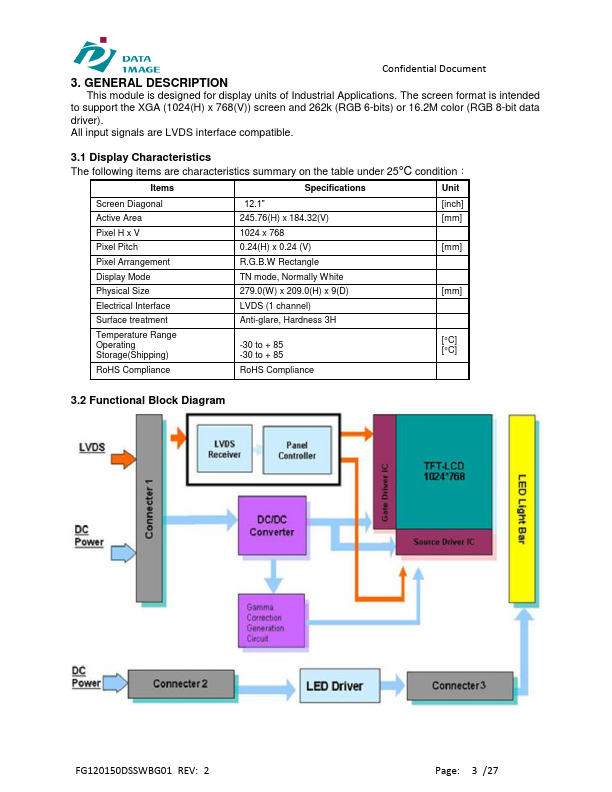

GENERAL DESCRIPTION
3 4.ABSOLUTE MAXIMUM RATINGS

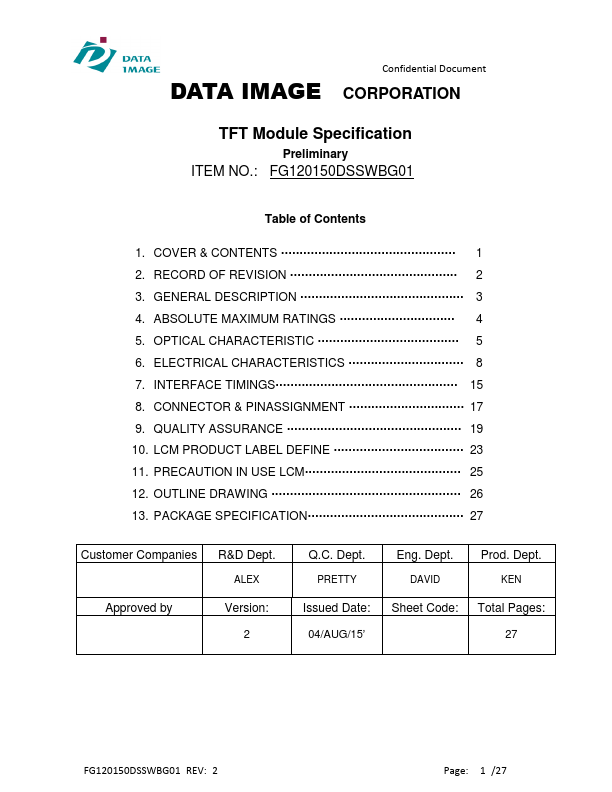

4 5. OPTICAL CHARACTERISTIC 5 6.ELECTRICAL CHARACTERISTICS
8 7. INTERFACE TIMINGS 15 8. CONNECTOR & PINASSIGNMENT 17 9. QUALITY ASSURANCE 19 10. LCM PRODUCT LABEL DEFINE 23 11. PRECAUTION IN USE LCM 25 12. OUTLINE DRAWING 26 13. PACKAGE SPECIFICATION 27 Customer Companies R&D Dept. ALEX Approved by Version: 2 Q.C. Dept. PRETTY Eng. Dept. DAVID Prod. Dept. KEN Issued Date: 04/AUG/15’ Sheet Code: Total Pages: 27 FG120150DSSWBG01 REV: 2 Page: 1 /27 2. RECORD OF REVISION Confidential Document Rev Date Item Page Comment 1 05/MAR/12’ 9.2 2 04/AUG/15’ 10 12 Initial Preliminary 20 1.
