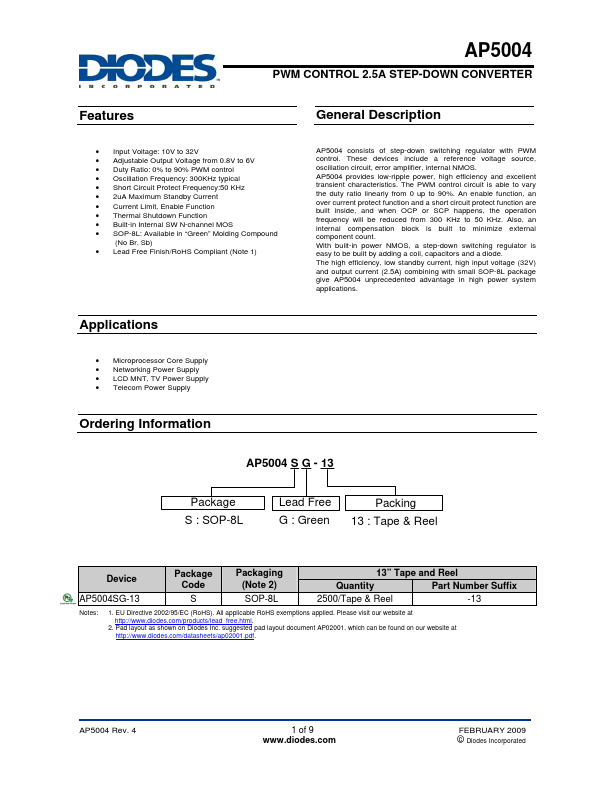

AP5004 - PWM CONTROL 2.5A STEP-DOWN CONVERTER

General Description

AP5004 consists of step-down switching regulator with PWM control.

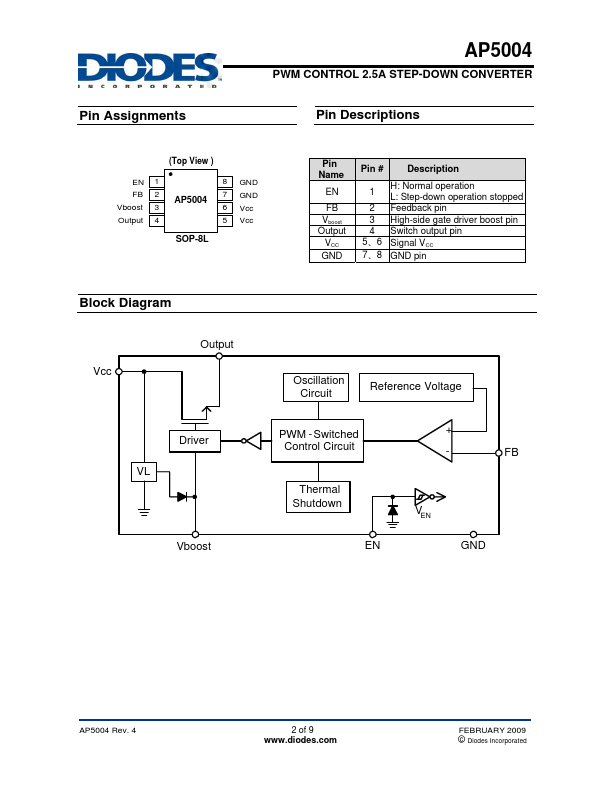

These devices include a reference voltage source, oscillation circuit, error amplifier, internal NMOS.

AP5004 provides low-ripple power, high efficiency and excellent transient characteristics.

Key Features

  • Input Voltage: 10V to 32V Adjustable Output Voltage from 0.8V to 6V Duty Ratio: 0% to 90% PWM control Oscillation Frequency: 300KHz typical Short Circuit Protect Frequency:50 KHz 2uA Maximum Standby Current Current Limit, Enable Function Thermal Shutdown Function Built-in Internal SW N-channel MOS SOP-8L: Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/RoHS Compliant (.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AP50-B10 AC Current transducer AP-B10 LEM
AP50-B420L AC Current transducer AP-B420L LEM
AP501 PCS-band 4W HBT Amplifier Module WJ Communication
AP502 UMTS-band 4W HBT Amplifier Module WJ Communication
AP503 DCS-band 4W HBT Amplifier Module WJ Communication

Other Datasheets by Diodes Incorporated

Part Number Description
AP5002 PWM CONTROL 2A STEP-DOWN CONVERTER
AP5100 1.2A Step-Down Converter
AP5101 1.5A Step-Down Converter

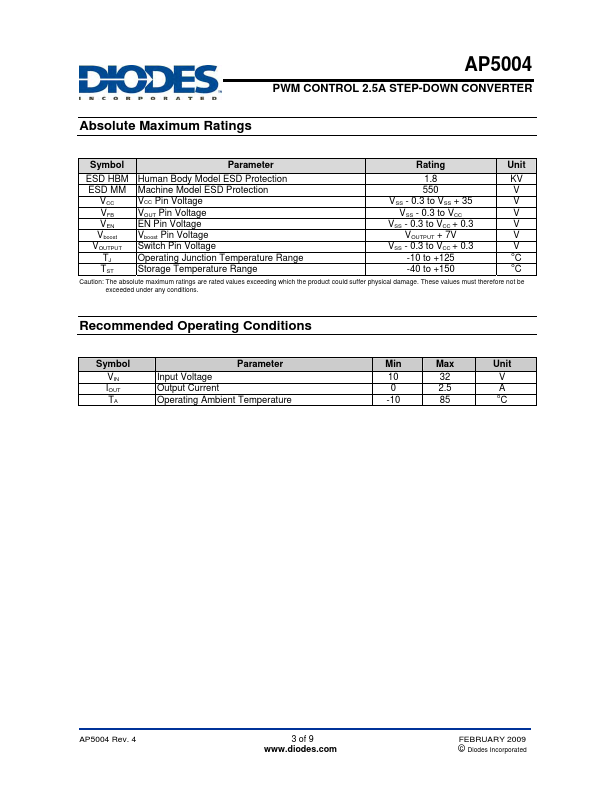

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
www.DataSheet4U.com AP5004 PWM CONTROL 2.5A STEP-DOWN CONVERTER Features • • • • • • • • • • • Input Voltage: 10V to 32V Adjustable Output Voltage from 0.8V to 6V Duty Ratio: 0% to 90% PWM control Oscillation Frequency: 300KHz typical Short Circuit Protect Frequency:50 KHz 2uA Maximum Standby Current Current Limit, Enable Function Thermal Shutdown Function Built-in Internal SW N-channel MOS SOP-8L: Available in “Green” Molding Compound (No Br, Sb) Lead Free Finish/RoHS Compliant (Note 1) General Description AP5004 consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal NMOS. AP5004 provides low-ripple power, high efficiency and excellent transient characteristics.
