B0520LW - 0.5A SURFACE ACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Overview

Diodes Incorporated

📥 Download Datasheet

B0520LW 0.5A SURFACE ACE MOUNT SCHOTTKY BARRIER RECTIFIER by Diodes Incorporated - Datasheet Preview — Datasheet preview – B0520LW

Datasheet Details

Part number	B0520LW
Manufacturer	DIODES Incorporated
File Size	651.10 KB
Description	0.5A SURFACE ACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet	B0520LW Datasheet

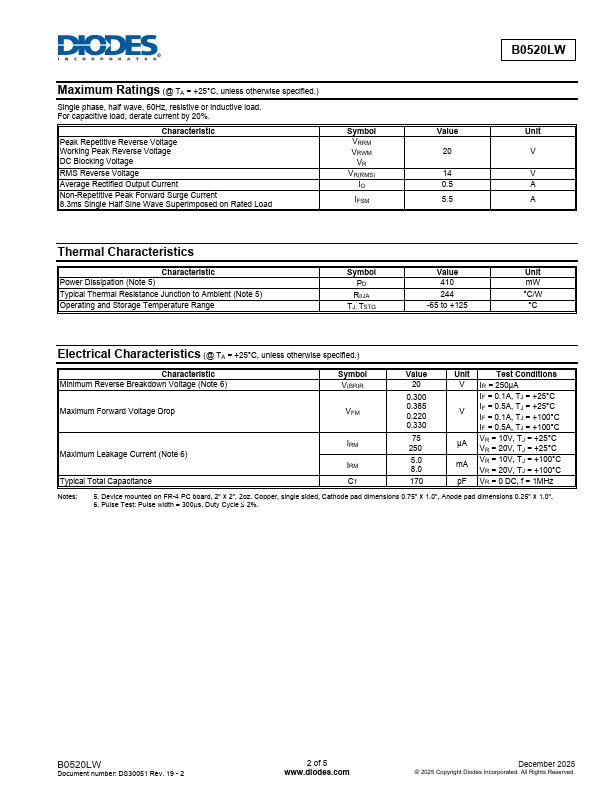

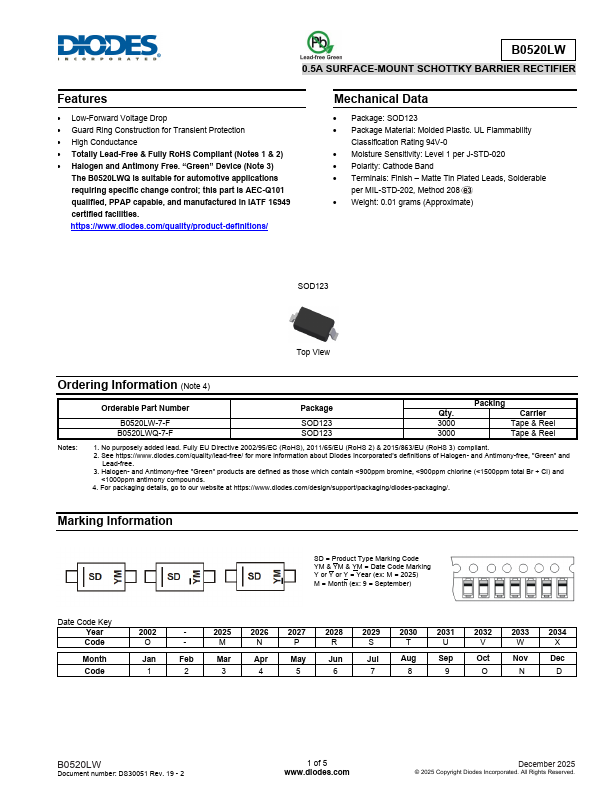

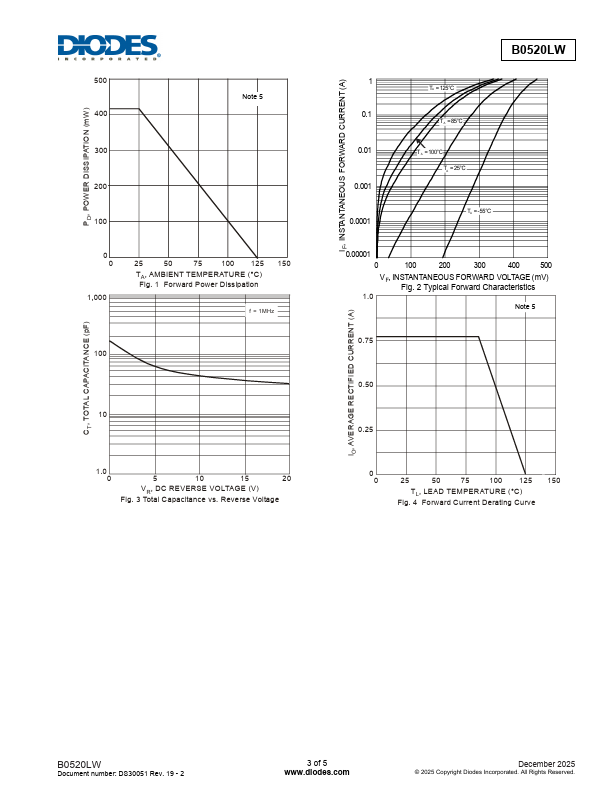

Additional preview pages of the B0520LW datasheet.

Product details

Features

Low Forward Voltage Drop.
Guard Ring Construction for Transient Protection.
High Conductance.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
