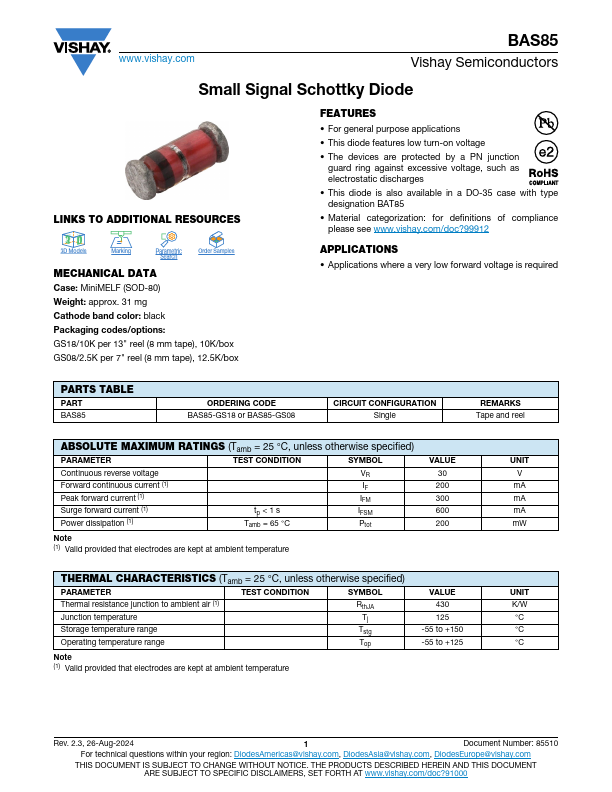

Datasheet Summary
.vishay.
Vishay Semiconductors
Small Signal Schottky Diode
LINKS TO ADDITIONAL RESOURCES
3D 3D
3D Models
Marking
Parametric Search
Order Samples

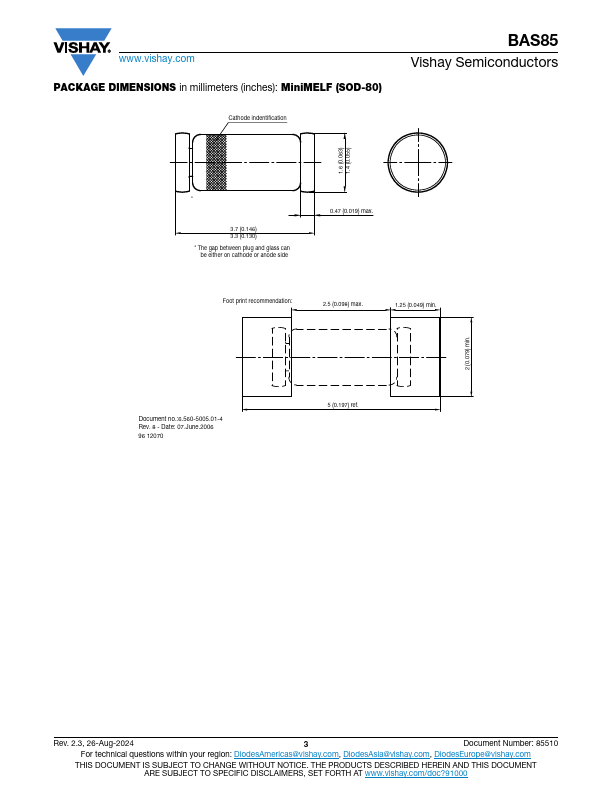

MECHANICAL DATA Case: MiniMELF (SOD-80) Weight: approx. 31 mg Cathode band color: black Packaging codes/options: GS18/10K per 13" reel (8 mm tape), 10K/box GS08/2.5K per 7" reel (8 mm tape), 12.5K/box
Features
- For general purpose applications
- This diode Features low turn-on voltage
- The devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
- This diode is also available in a DO-35 case with type designation BAT85
- Material categorization: for definitions of...
