BC807 - PNP SURFACE MOUNT TRANSISTOR

Key Features

  • Ideally Suited for Automatic Insertion.
  • Epitaxial Planar Die Construction.
  • Complementary NPN Types Available (BC817).
  • For switching and AF Amplifier.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BC807 PNP general purpose transistor NXP
BC807 PNP Epitaxial Silicon Transistor Fairchild Semiconductor
BC807 PNP Silicon Transistor AUK
BC807 500mA PNP general-purpose transistors nexperia
BC807 PNP SILICON TRANSISTOR UTC

Other Datasheets by Diodes Incorporated

Part Number Description
BC817-16 45V NPN SMALL SIGNAL TRANSISTOR
BC817-16W 45V NPN SMALL SIGNAL TRANSISTOR
BC817-25 45V NPN SMALL SIGNAL TRANSISTOR
BC817-25W 45V NPN SMALL SIGNAL TRANSISTOR
BC817-40 45V NPN SMALL SIGNAL TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

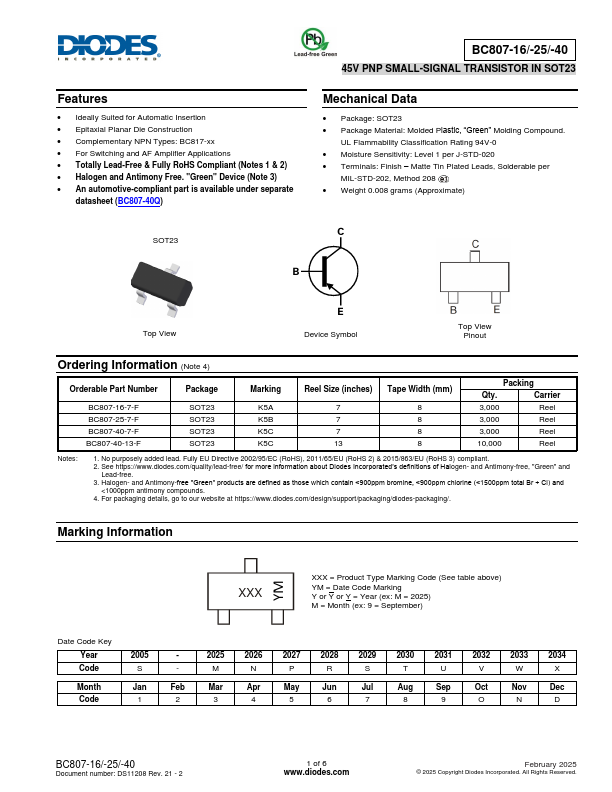

Features  Ideally Suited for Automatic Insertion  Epitaxial Planar Die Construction  Complementary NPN Types Available (BC817)  For switching and AF Amplifier Applications  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. "Green" Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability  PPAP Capable (Note 4) SOT23 BC807-16/-25/-40 45V PNP SMALL SIGNAL TRANSISTOR IN SOT23 Mechanical Data  Case: SOT23  Case Material: Molded Plastic, “Green” Molding Compound  UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208  Weight 0.
