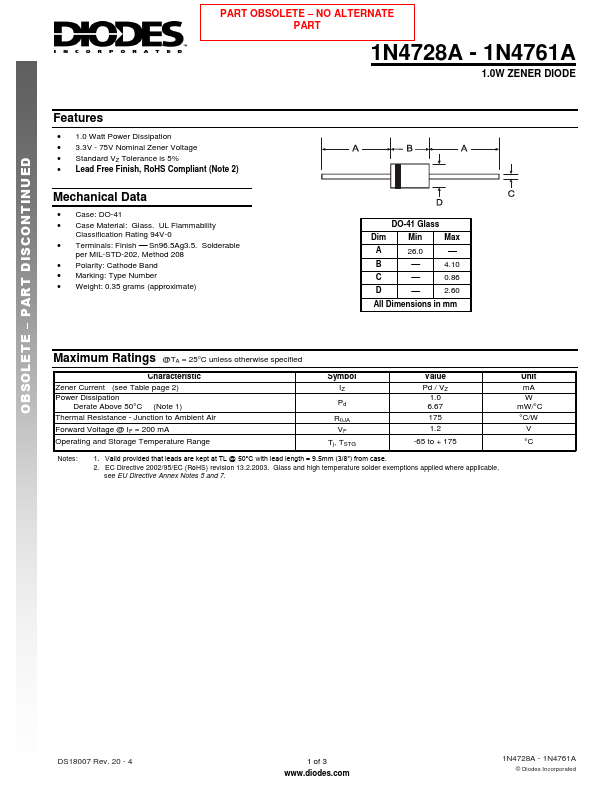

1N4751A Description
OBSOLETE PART DISCONTINUED PART OBSOLETE NO ALTERNATE PART 1N4728A - 1N4761A 1.0W ZENER DIODE.
1N4751A Key Features
- 1.0 Watt Power Dissipation
- 75V Nominal Zener Voltage
- Standard VZ Tolerance is 5%
- Lead Free Finish, RoHS pliant (Note 2)
- Case: DO-41
- Case Material: Glass. UL Flammability
- Terminals: Finish Sn96.5Ag3.5. Solderable
- Polarity: Cathode Band
- Marking: Type Number
- Weight: 0.35 grams (approximate)
