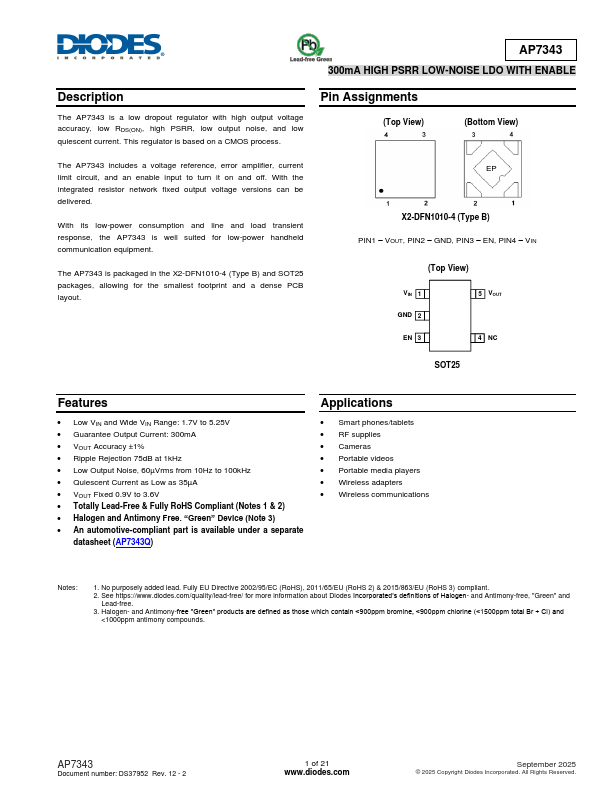

AP7343 Description
The AP7343 is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise, and low quiescent current. This regulator is based on a CMOS process. Pin Assignments (Top View) (Bottom View) The AP7343 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on and off.
AP7343 Key Features
- Low VIN and Wide VIN Range: 1.7V to 5.25V
- Guarantee Output Current: 300mA
- VOUT Accuracy ±1%
- Ripple Rejection 75dB at 1kHz
- Low Output Noise, 60µVrms from 10Hz to 100kHz
- Quiescent Current as Low as 35µA
- VOUT Fixed 0.9V to 3.6V
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- An automotive-pliant part is available under a separate
