BAS521Q Datasheet | Diodes Incorporated

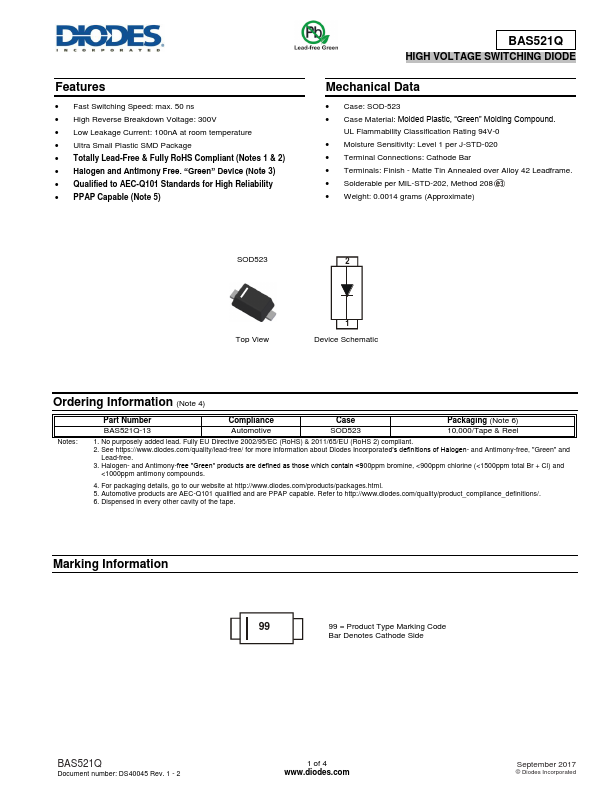

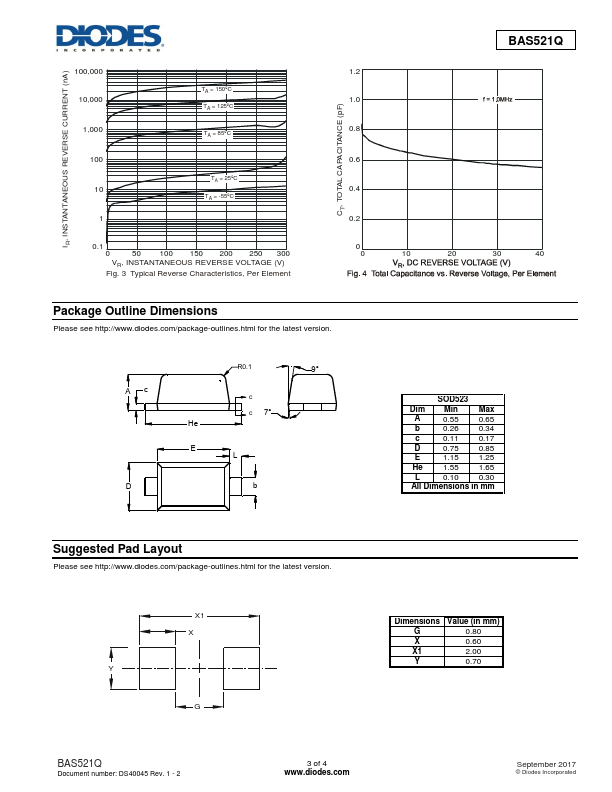

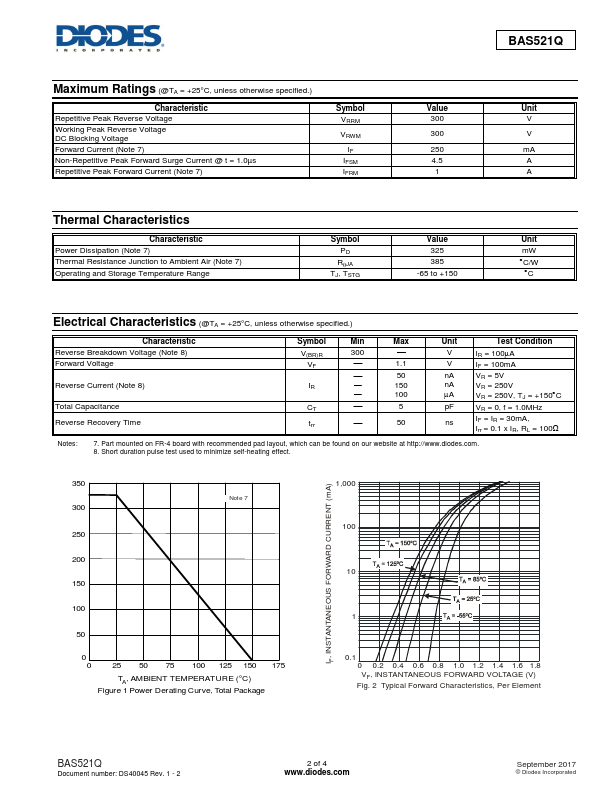

Features - Fast Switching Speed: max. 50 ns - High Reverse Breakdown Voltage: 300V - Low Leakage Current: 100n A at room temperature - Ultra Small Plastic SMD Package - Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2) - Halogen and Antimony Free. “Green” Device (Note 3) - Qualified to AEC-Q101 Standards for High Reliability - PPAP Capable (Note 5) HIGH VOLTAGE SWITCHING DIODE Mechanical Data - Case: SOD-523 - Case Material: Molded Plastic, “Green” Molding pound. UL Flammability Classification Rating 94V-0 - Moisture Sensitivity: Level 1 per J-STD-020 - Terminal Connections: Cathode Bar - Terminals: Finish - Matte Tin Annealed over Alloy 42 Leadframe. - Solderable per MIL-STD-202, Method 208 - Weight: 0.0014 grams (Approximate) SOD523 Top View 1 Device Schematic Ordering Information (Note 4) Notes: Part Number BAS521Q-13 pliance Automotive Case SOD523 Packaging (Note 6) 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro HS) & 2011/65/EU (Ro HS 2) pliant. 2. See https://.diodes./quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. 4. For packaging details, go to our website at http://.diodes./products/packages.html. 5. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://.diodes./quality/product_pliance_definitions/. 6. Dispensed in every other cavity of the tape. Marking Information 99 = Product Type Marking Code Bar Denotes Cathode Side Document number: DS40045 Rev. 1 - 2 1 of 4...
