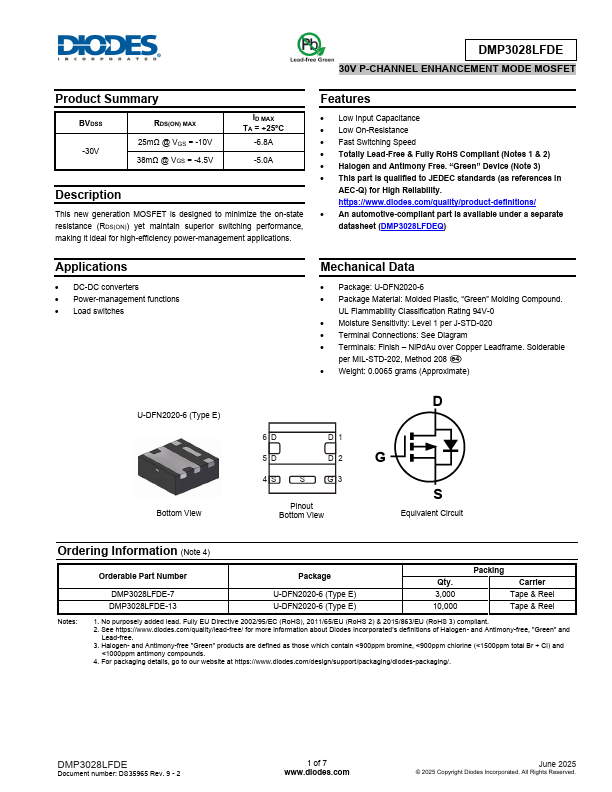

DMP3028LFDE Datasheet 30v P-channel MOSFET

Manufacturer: Diodes Incorporated

Overview: DMP3028LFDE 30V P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS -30V RDS(ON) MAX 25mΩ @ VGS = -10V 38mΩ @ VGS = -4.5V ID MAX TA = +25°C -6.8A -5.

General Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.

Key Features

  • Low Input Capacitance.
  • Low On-Resistance.
  • Fast Switching Speed.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www. diodes. com/quality/product-definitions/.
  • An automotive-compliant part is available under a separate datasheet (DMP3028LFDEQ).
