DMP3099L - P-Channel MOSFET

Description

This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.

Backlighting Power-management functions DC-DC converters

Features

  • Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Low Input/Output Leakage.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • An automotive-compliant part is available under a separate datasheet (DMP3099LQ) Mechanical Data.
  • Package: SOT23.
  • Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating.

📥 Download Datasheet

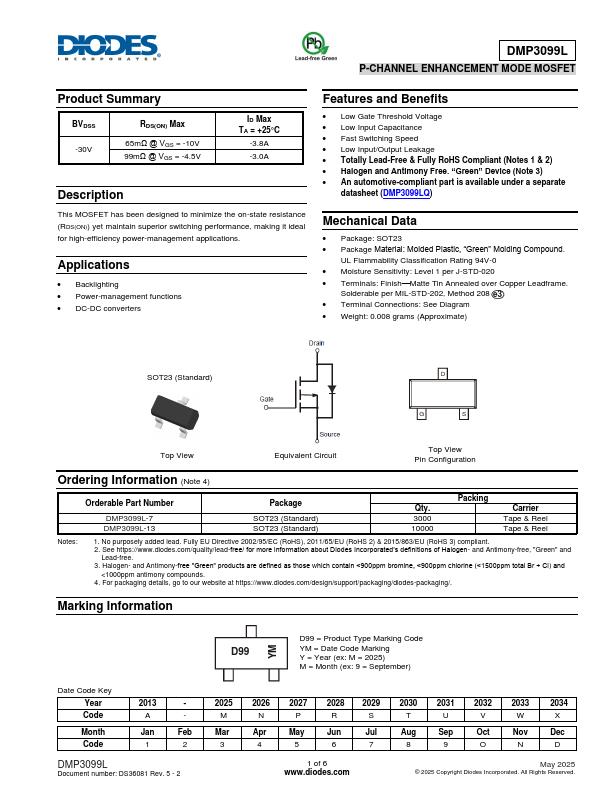

Datasheet preview – DMP3099L

Datasheet Details

Part number DMP3099L
Manufacturer DIODES
File Size 290.35 KB
Description P-Channel MOSFET
Datasheet download datasheet DMP3099L Datasheet

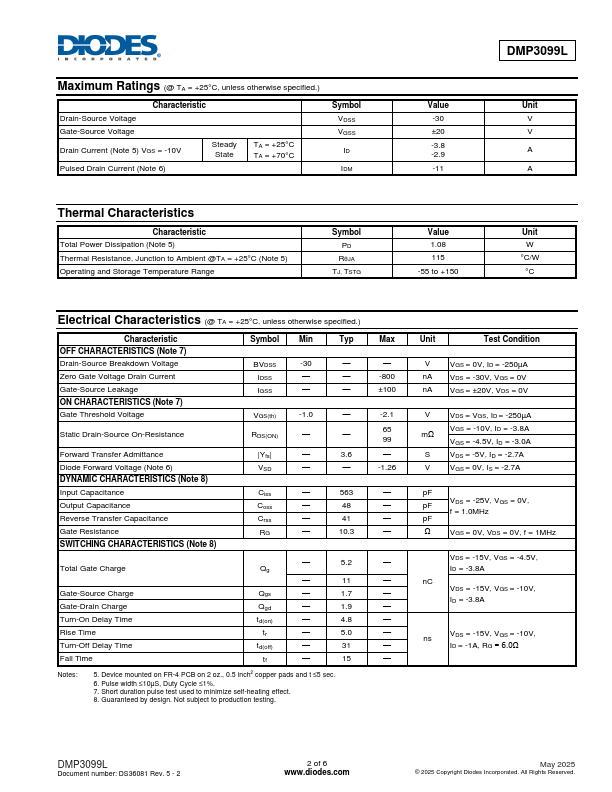

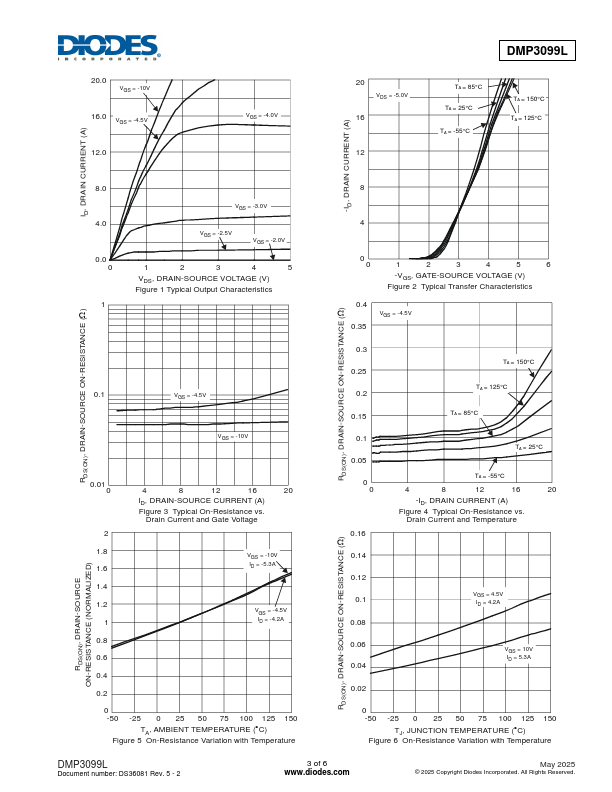

Additional preview pages of the DMP3099L datasheet.

📁 Similar Datasheet

Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
DMP3099L P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS -30V RDS(ON) Max 65mΩ @ VGS = -10V 99mΩ @ VGS = -4.5V ID Max TA = +25°C -3.8A -3.0A Description This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. Applications • Backlighting • Power-management functions • DC-DC converters Features and Benefits • Low Gate Threshold Voltage • Low Input Capacitance • Fast Switching Speed • Low Input/Output Leakage • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free.
