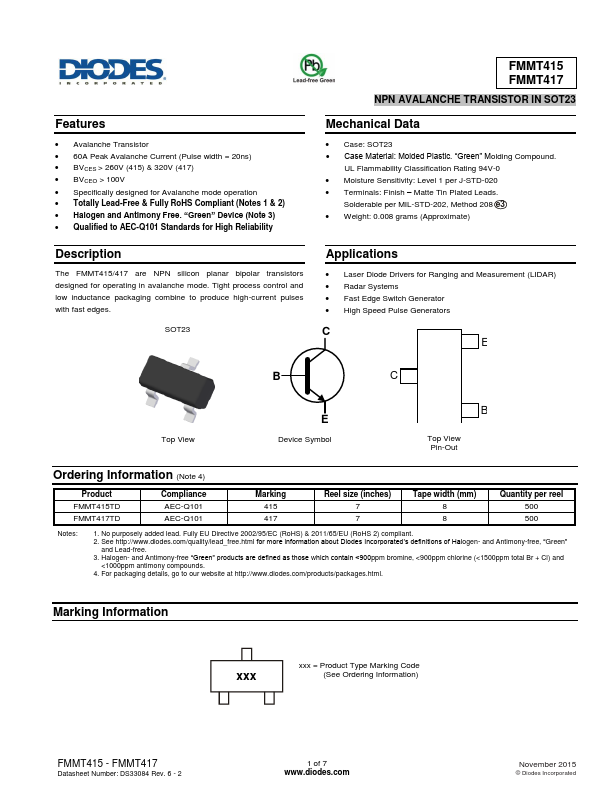

Diodes Incorporated FMMT417
The FMMT415/417 are NPN silicon planar bipolar transistors designed for operating in avalanche mode.| Part No. | FMMT417 |
|---|---|
| Datasheet | FMMT417 Download |
| Manufacturer |  Diodes Incorporated |
| Description | NPN AVALANCHE TRANSISTOR |
| Buy | Stock & Price |
FEATURES
● Avalanche Transistor● 60A Peak Avalanche Current (Pulse width = 20ns)
● BVCES > 260V (415) & 320V (417)
● BVCEO > 100V
● Specifically designed for Avalanche mode operation
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● Qualified to AEC-Q101 Standards for High Reliability FMMT415 FMMT417 NPN AVALANCHE TRANSISTOR IN SOT23
MECHANICAL DATA
● Case: SOT23● Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish – Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 e3
● Weight: 0.008 grams (Approximate)
DESCRIPTION
Tight process control and low inductance packaging combine to produce high-current pulses with fast edges. SOT23APPLICATIONS
● Laser Diode Drivers for Ranging and Measurement (LIDAR)● Radar Systems
● Fast Edge Switch Generator
● High Speed Pulse Generators C E B C Top View E Device S...
