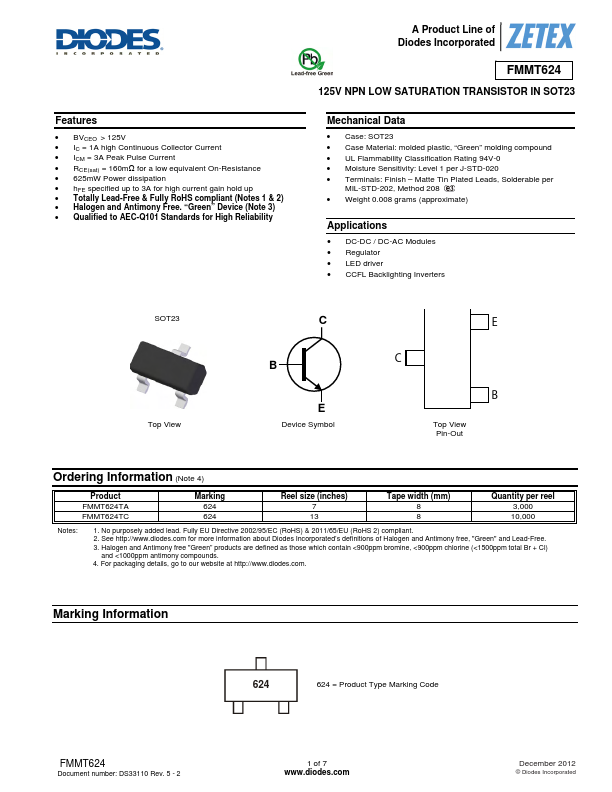

Diodes Incorporated FMMT624
125V NPN LOW SATURATION TRANSISTOR
| Part No. | FMMT624 |
|---|---|
| Datasheet | FMMT624 Download |
| Manufacturer |  Diodes Incorporated |
| Description | 125V NPN LOW SATURATION TRANSISTOR |
| Buy | Stock & Price |
FEATURES
● BVCEO > 125V● IC = 1A high Continuous Collector Current
● ICM = 3A Peak Pulse Current
● RCE(sat) = 160mΩ for a low equivalent On-Resistance
● 625mW Power dissipation
● hFE specified up to 3A for high current gain hold up
● Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● Qualified to AEC-Q101 Standards for High Reliability A Product Line of Diodes Incorporated FMMT624 125V NPN LOW SATURATION TRANSISTOR IN SOT23
MECHANICAL DATA
● Case: SOT23● Case Material: molded plastic, “Green” molding compound
● UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
● Weight 0.008 grams (approximate)
APPLICATIONS
● DC-DC / DC-AC Modules● Regulator
● LED driver
● CCFL Backlighting Inverters SOT23 Top View C B E Device Symbol E C B Top View Pin-Out Ordering Information (Note 4) Product FMMT624TA FMMT624TC Marking 624 624 Reel size (inches) 7 13 Tape width (mm) 8 8 Quantity per reel 3,000 10,000 Notes: 1.
