FZT1048A - 17.5V NPN MEDIUM POWER HIGH GAIN TRANSISTOR

Key Features

  • BVCEO > 17.5V.
  • BVCES > 50V.
  • IC = 5A High Continuous Collector Current.
  • ICM = 20A Peak Pulse Current.
  • Low Saturation Voltage VCE(sat).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FZT1048A NPN Transistors Kexin
FZT2222A SOT223 NPN SILICON PLANAR SWITCHING TRANSISTOR Zetex Semiconductors
FZT2907 SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR ETC
FZT2907A SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR ETC
FZT3019 NPN General Purpose Amplifier Fairchild Semiconductor

Other Datasheets by Diodes Incorporated

Part Number Description
FZT1047A 10V NPN MEDIUM POWER TRANSISTOR
FZT1049A 25V NPN MEDIUM POWER TRANSISTOR
FZT1051A NPN MEDIUM POWER HIGH GAIN TRANSISTOR
FZT1053A 75V NPN MEDIUM POWER HIGH GAIN TRANSISTOR
FZT1147A 12V PNP MEDIUM POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

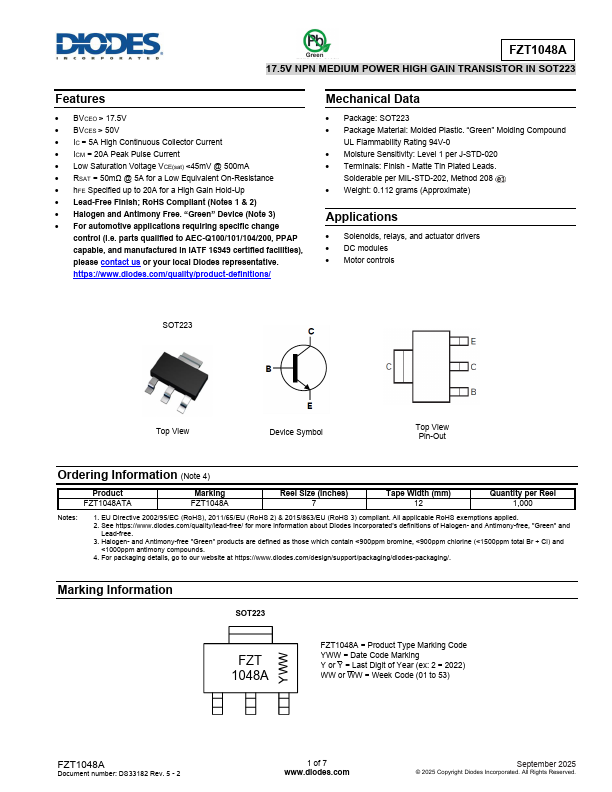

ADVANCED INFORMATION Green FZT1048A 17.5V NPN MEDIUM POWER HIGH GAIN TRANSISTOR IN SOT223 Features  BVCEO > 17.5V  BVCES > 50V  IC = 5A High Continuous Collector Current  ICM = 20A Peak Pulse Current  Low Saturation Voltage VCE(sat) <45mV @ 500mA  RSAT = 50mΩ @ 5A for a Low Equivalent On-Resistance  hFE Specified up to 20A for a High Gain Hold-Up  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Mechanical Data  Case: SOT223  Case Material: Molded Plastic. “Green” Molding Compound UL Flammability Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish - Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208  Weight: 0.
