FZT1151A
FZT1151A is 40V PNP MEDIUM POWER TRANSISTOR manufactured by Diodes Incorporated.
Green

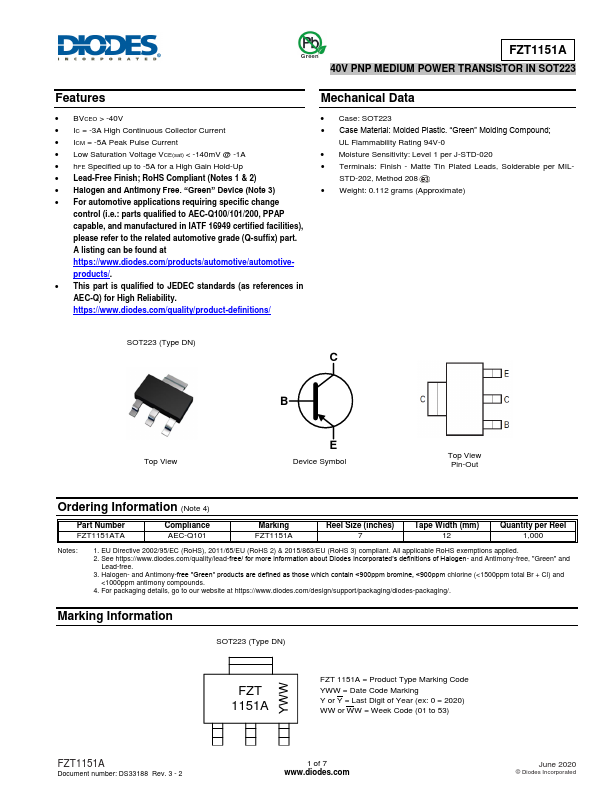

40V PNP MEDIUM POWER TRANSISTOR IN SOT223
Features
- BVCEO > -40V
- IC = -3A High Continuous Collector Current
- ICM = -5A Peak Pulse Current
- Low Saturation Voltage VCE(sat) < -140m V @ -1A
- h FE Specified up to -5A for a High Gain Hold-Up
- Lead-Free Finish; Ro HS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://.diodes./products/automotive/automotiveproducts/.
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://.diodes./quality/product-definitions/
Mechanical Data
- Case: SOT223
- Case Material: Molded Plastic. “Green” Molding pound;
UL Flammability Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish
- Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208
- Weight: 0.112 grams (Approximate)
SOT223 (Type DN)
Top View
Device Symbol
Top View Pin-Out
Ordering Information (Note 4)
Part Number FZT1151ATA pliance AEC-Q101
Marking FZT1151A
Reel Size (inches) 7
Tape Width (mm)...
