FZT688B - 12V NPN MEDIUM POWER TRANSISTOR

Features

  • BVCEO > 12V.
  • BVCBO > 12V.
  • IC = 4A High Continuous Current.
  • hFE > 400 @ 3A and Low Saturation Voltage.
  • Extremely Low Equivalent On-Resistance; RCE(SAT) 83mΩ at 3A.
  • Complementary PNP Type: FZT788B.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
  • Case: SOT223.
  • Case Material: Molded Plastic, “Green” Molding Compound. UL Fla.

📥 Download Datasheet

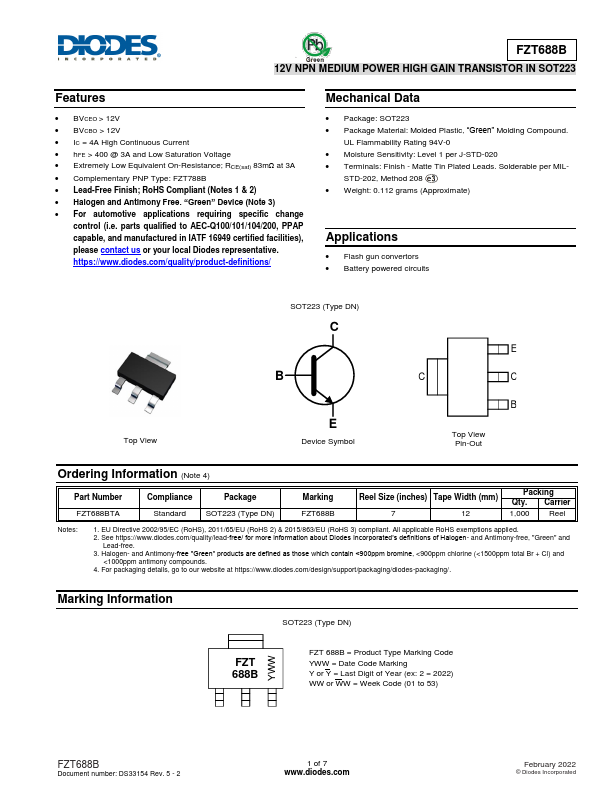

Datasheet preview – FZT688B

Datasheet Details

Part number FZT688B
Manufacturer DIODES
File Size 658.01 KB
Description 12V NPN MEDIUM POWER TRANSISTOR
Datasheet download datasheet FZT688B Datasheet

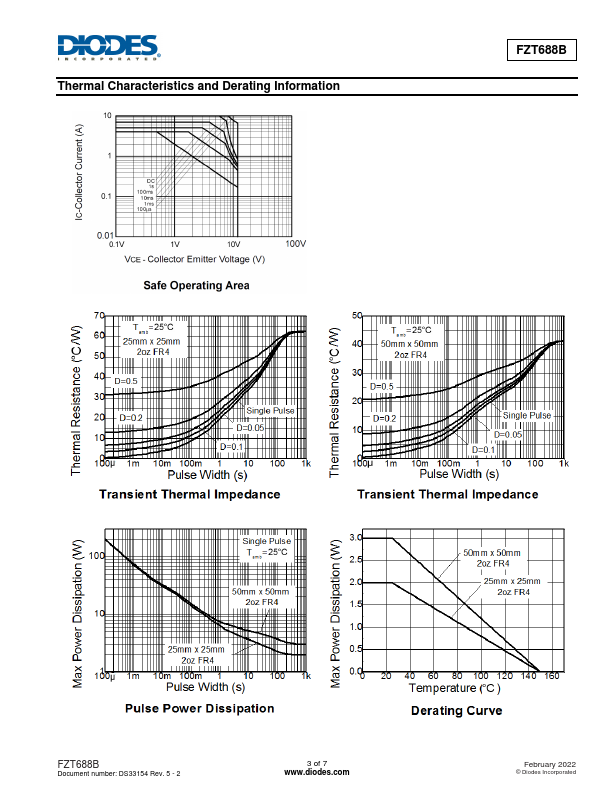

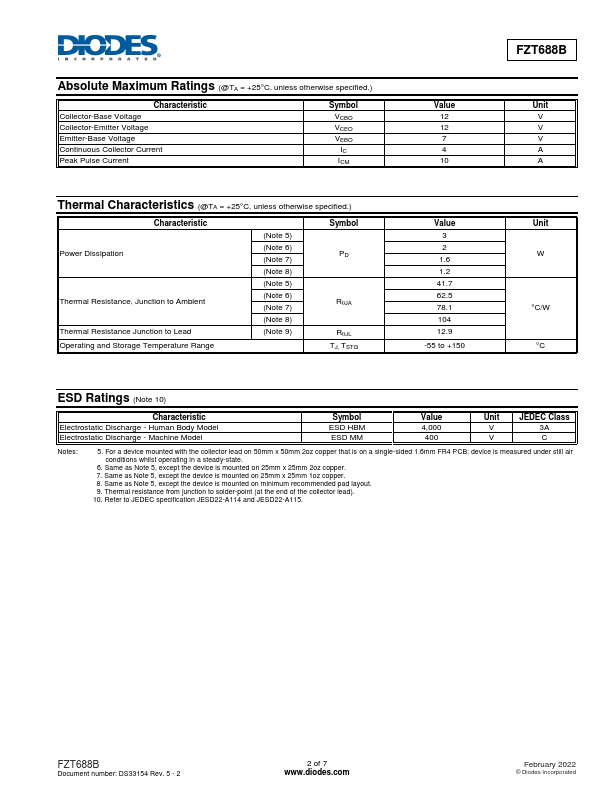

Additional preview pages of the FZT688B datasheet.

📁 Similar Datasheet

  • FZT688B - NPN Silicon Planar Medium Power High Gain Transistor (Kexin)
  • FZT649 - NPN Low Saturation Transistor (Fairchild Semiconductor)
  • FZT651 - High Performance Transistors (Kexin)
  • FZT653 - NPN Silicon Planar High Performance Transistor (Kexin)
  • FZT657 - NPN Silicon Planar Medium Power Transistor (Kexin)
  • FZT690B - NPN Silicon Planar Medium Power High Gain Transistor (Kexin)
  • FZT692B - NPN Silcon Planar Medium Power High Gain Transistor (Kexin)
  • FZT1048A - NPN Transistors (Kexin)
  • FZT2222A - SOT223 NPN SILICON PLANAR SWITCHING TRANSISTOR (Zetex Semiconductors)
  • FZT2907 - SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR (ETC)
Other Datasheets by Diodes
  • FZT689B - NPN MEDIUM POWER HIGH GAIN TRANSISTOR
  • FZT600 - 140V NPN DARLINGTON TRANSISTOR
  • FZT600B - 140V NPN DARLINGTON TRANSISTOR
  • FZT603 - 80V NPN DARLINGTON TRANSISTOR
  • FZT605 - 120V NPN DARLINGTON TRANSISTOR
  • FZT649 - 25V NPN HIGH PERFORMANCE TRANSISTOR
  • FZT651 - NPN HIGH PERFORMANCE TRANSISTOR
  • FZT651Q - NPN HIGH PERFORMANCE TRANSISTOR

Full PDF Text Transcription

Click to expand full text
FZT688B Green 12V NPN MEDIUM POWER HIGH GAIN TRANSISTOR IN SOT223 Features  BVCEO > 12V  BVCBO > 12V  IC = 4A High Continuous Current  hFE > 400 @ 3A and Low Saturation Voltage  Extremely Low Equivalent On-Resistance; RCE(SAT) 83mΩ at 3A  Complementary PNP Type: FZT788B  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Mechanical Data  Case: SOT223  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish - Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208  Weight: 0.
