FZT751 Datasheet 60v PNP Medium Power Transistor

Manufacturer: Diodes Incorporated

Overview: Green FZT751 60V PNP MEDIUM POWER TRANSISTOR IN SOT223.

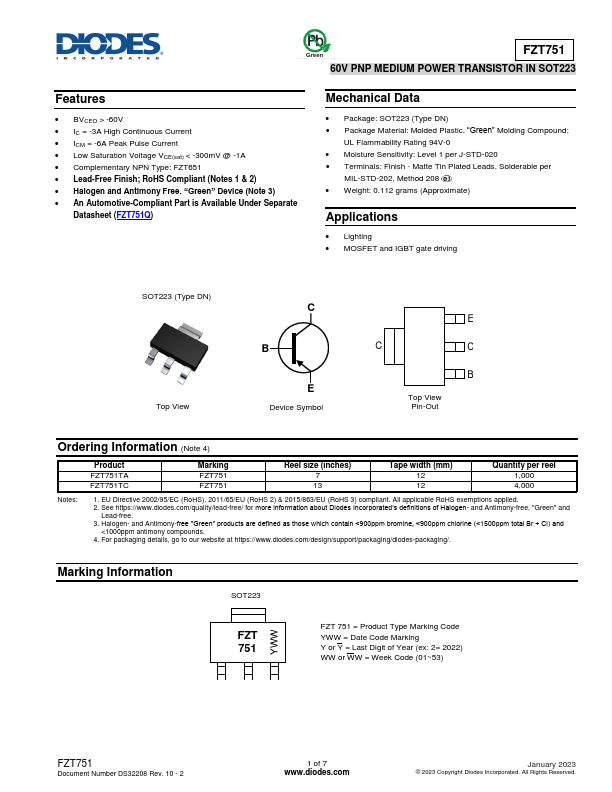

FZT751 datasheet preview

Datasheet Details

Part number	FZT751
Manufacturer	Diodes Incorporated
File Size	1.02 MB
Description	60V PNP MEDIUM POWER TRANSISTOR
Datasheet	FZT751-Diodes.pdf

Key Features

BVCEO > -60V.
IC = -3A High Continuous Current.
ICM = -6A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < -300mV @ -1A.
Complementary NPN Type: FZT651.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
An Automotive-Compliant Part is Available Under Separate Datasheet (FZT751Q) Mechanical Data.
Package: SOT223 (Type DN).
Package Material: Molded Plastic. “Green” Molding Compound; UL Flamma.
