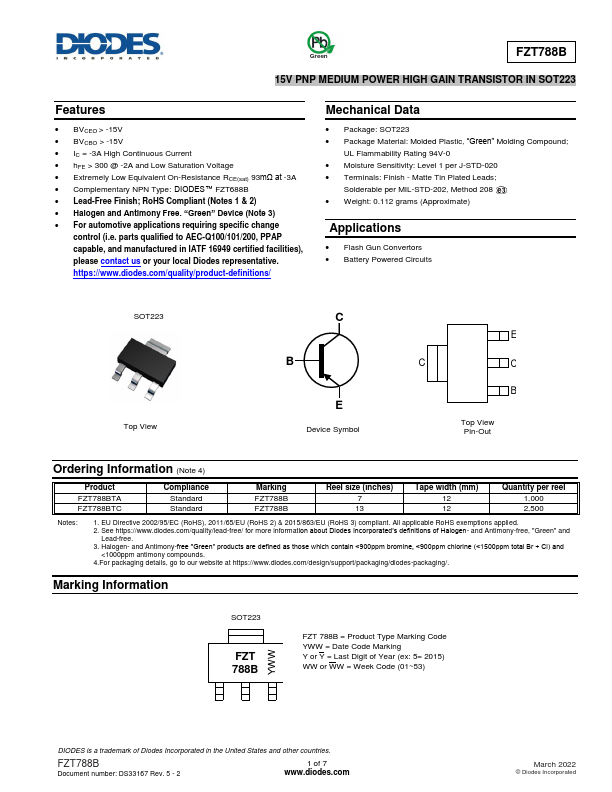

FZT788B - 15V PNP MEDIUM POWER HIGH GAIN TRANSISTOR

Features

  • BVCEO > -15V.
  • BVCBO > -15V.
  • IC = -3A High Continuous Current.
  • hFE > 300 @ -2A and Low Saturation Voltage.
  • Extremely Low Equivalent On-Resistance RCE(sat) 93mΩ at -3A.
  • Complementary NPN Type: FZT688B.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
  • Case: SOT223.
  • Case Material: Molded Plastic, “Green” Molding Compound; UL.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FZT704 SOT223 NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTORS ETC
FZT749 PNP Low Saturation Transistor Fairchild Semiconductor
FZT749 Medium Power Transistor Kexin
FZT751 High Performance Transistor Guangdong Kexin Industrial
FZT790A PNP Low Saturation Transistor Fairchild Semiconductor

Other Datasheets by Diodes Incorporated

Part Number Description
FZT789A 25V PNP MEDIUM POWER TRANSISTOR
FZT789AQ 25V PNP TRANSISTOR
FZT705 120V PNP DARLINGTON TRANSISTOR
FZT7053 100V NPN Darlington transistor
FZT717 PNP MEDIUM POWER TRANSISTOR

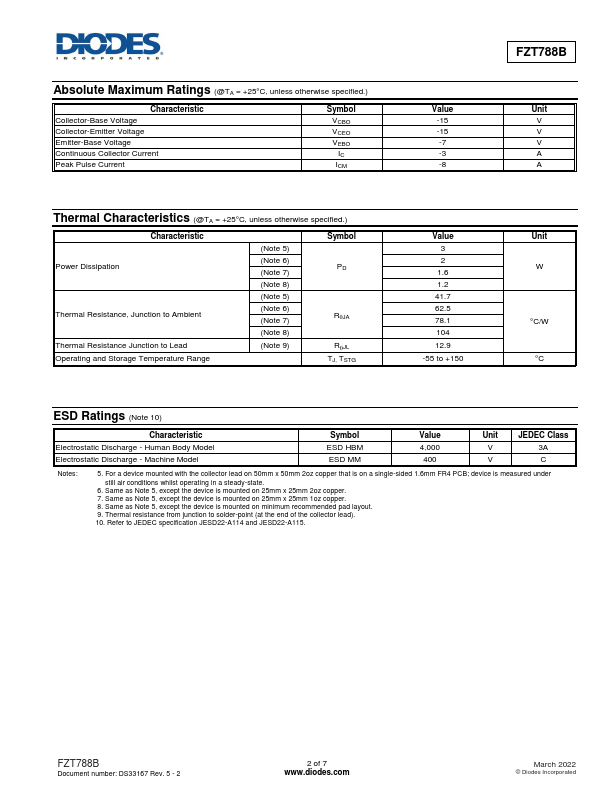

Full PDF Text Transcription

Click to expand full text
Green FZT788B 15V PNP MEDIUM POWER HIGH GAIN TRANSISTOR IN SOT223 Features  BVCEO > -15V  BVCBO > -15V  IC = -3A High Continuous Current  hFE > 300 @ -2A and Low Saturation Voltage  Extremely Low Equivalent On-Resistance RCE(sat) 93mΩ at -3A  Complementary NPN Type: FZT688B  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Mechanical Data  Case: SOT223  Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish - Matte Tin Plated Leads; Solderable per MIL-STD-202, Method 208  Weight: 0.
