GBJ25005 - 25A GLASS PASSIVATED BRIDGE RECTIFIER

Key Features

  • Glass Passivated Die Construction.
  • High Case Dielectric Strength of 2500VRMS.
  • Low Reverse Leakage Current.
  • Surge Overload Rating to 350A Peak.
  • Ideal for Printed Circuit Board.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBJ25005 25 Amp Glass Passivated Bridge Rectifier Micro Commercial Components
GBJ25005 25A Miniature Glass Passivated Single-Phase Bridge Rectifiers CITC
GBJ25005 Silicon Bridge Rectifiers GME
GBJ25005 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER STS
GBJ25005 GLASS PASSIVATED BRIDGE RECTIFIER KD

Other Datasheets by Diodes Incorporated

Part Number Description
GBJ2501 25A GLASS PASSIVATED BRIDGE RECTIFIER
GBJ2502 25A GLASS PASSIVATED BRIDGE RECTIFIER
GBJ2504 25A GLASS PASSIVATED BRIDGE RECTIFIER
GBJ2506 25A GLASS PASSIVATED BRIDGE RECTIFIER
GBJ2508 25A GLASS PASSIVATED BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

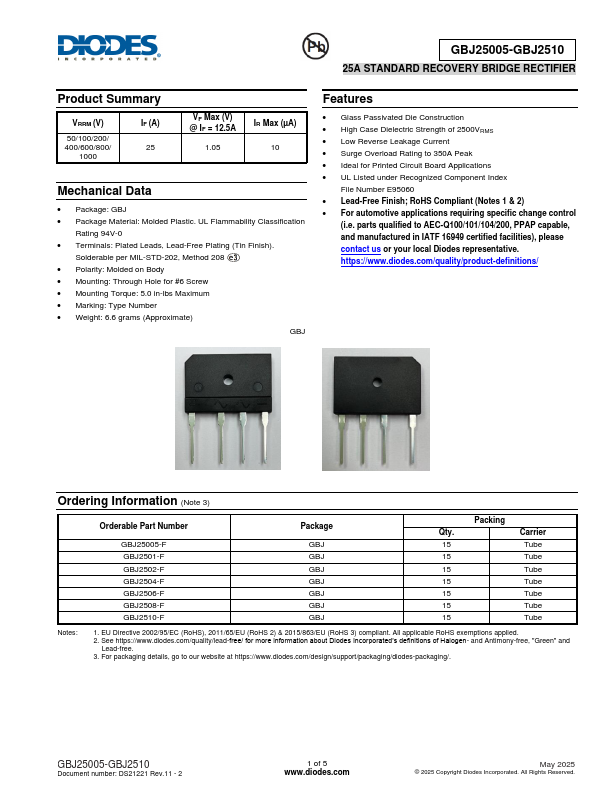

Features • Glass Passivated Die Construction • High Case Dielectric Strength of 2500VRMS • Low Reverse Leakage Current • Surge Overload Rating to 350A Peak • Ideal for Printed Circuit Board Applications • UL Listed Under Recognized Component Index, File Number E94661 • Lead Free Finish; RoHS Compliant (Notes 1 & 2) Marking Information Pb GBJ25005 - GBJ2510 25A GLASS PASSIVATED BRIDGE RECTIFIER Mechanical Data • Case: GBJ • Case Material: Molded Plastic. UL Flammability Classification 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Plated Leads, Solderable per MIL-STD-202, Method 208 • Lead Free Plating (Tin Finish). • Polarity: Molded on Body • Mounting: Through Hole for #6 Screw • Mounting Torque: 5.0 in-lbs Maximum • Marking: Type Number • Weight: 6.
