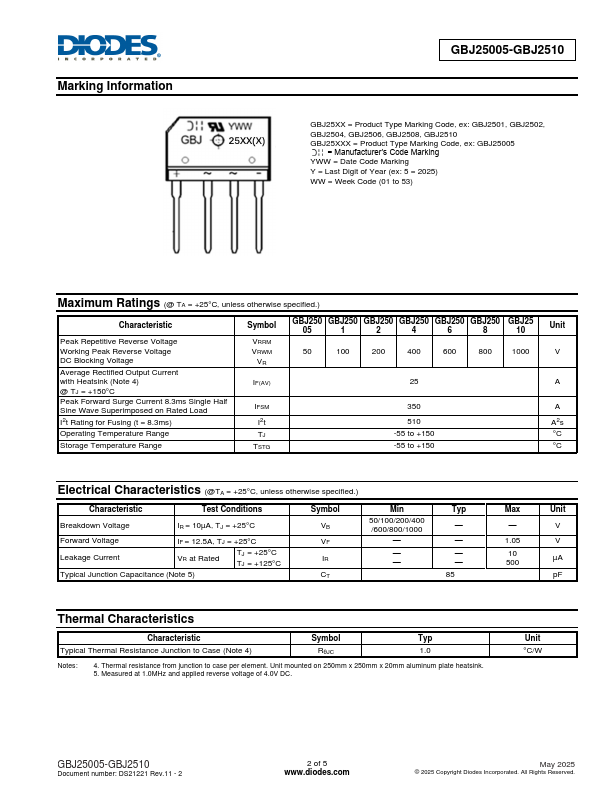

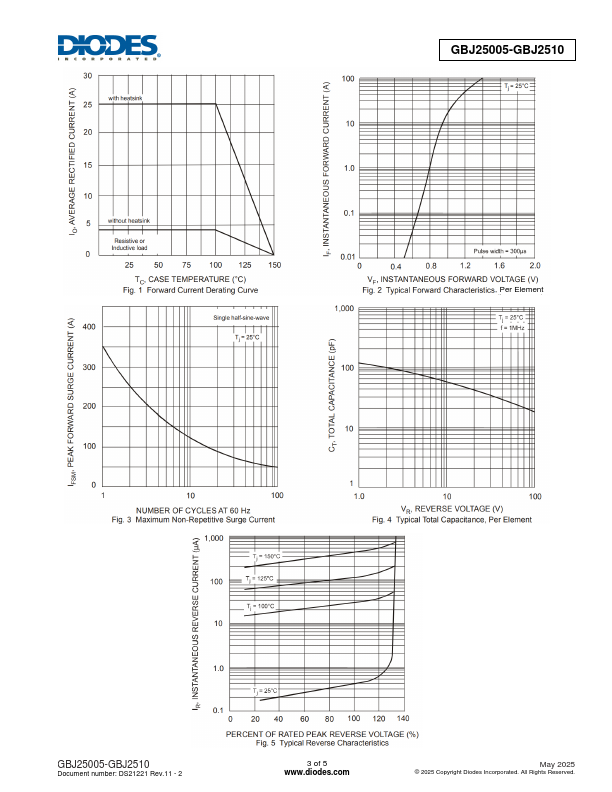

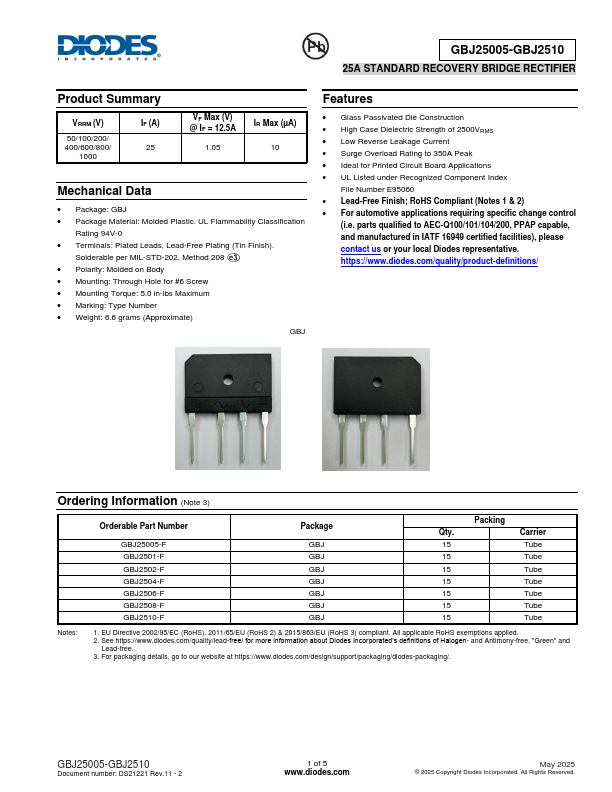

GBJ2510 datasheet by Diodes Incorporated.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | GBJ2510 |
|---|---|
| Datasheet | GBJ2510 GBJ25005 Datasheet (PDF) |
| File Size | 503.97 KB |
| Manufacturer | Diodes Incorporated |
| Description | 25A GLASS PASSIVATED BRIDGE RECTIFIER |
|
|
UL Flammability Classification Rating 94V-0 Terminals: Plated Leads, Lead-Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 Polarity:.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
GBJ2510 | 25 Amp Glass Passivated Bridge Rectifier | Micro Commercial Components |
 |
GBJ2510 | 25A Miniature Glass Passivated Single-Phase Bridge Rectifiers | CITC |
 |
GBJ2510 | Silicon Bridge Rectifiers | GME |
 |
GBJ2510 | GLASS PASSIVATED BRIDGE SINGLE PHASE BRIDGE RECTIFIERS | MOSPEC |
 |
GBJ2510 | SINGLE-PHASE BRIDGE RECTIFIER | Suntan |
