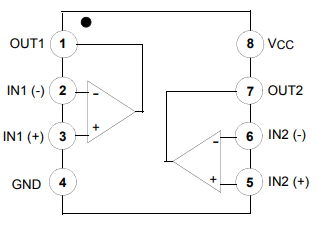

Description The LM2902/LM2904 series amplifiers consist of four and two independent high-gain operational amplifiers with very low input offset voltage specification. They have been designed to operate from a single power supply over a wide range of voltages; however operation from split power supplies is also possible. They offer low power supply current independent of the magnitude of the power supply voltage. The LM2902/LM2904 series are characterized for operation from -40℃ to +125℃ and the dual devices are available in SO-8, MSOP-8, TSSOP-8 and the quad devices available in SO-14 and TSSOP-14 with industry standard pin-outs. Both use green mold pound as standard. Features - Wide Power Supply Voltage Range: - Single Supply: 3V to 36V - Dual Supplies: ±1.5V to ±18V - Very Low Supply Current Drain - LM2904 500µA - Independent of Supply Voltage - LM2902 700µA - Independent of Supply Voltage - Low Input Bias Current: 20n A - Low Input Offset Voltage: - A Version: 1m V typ - Non-A Version: 2m V typ - Large DC Voltage Gain: 100d B - Wide Bandwidth (Unity Gain): 700k Hz (Temperature pensated) - Internally pensated with Unity Gain - Input mon-Mode Voltage Range Includes Ground - Differential Input Voltage Range Equal to the Power Supply Voltage - Large Output Voltage Swing: 0 to VCC-1.5V - SO-8, MSOP-8, TSSOP-8 (Duals) and SO-14, TSSOP-14 (Quads) Packages Available - Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2) - Halogen and Antimony Free. “Green” Device (Note 3) - For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://.diodes./quality/product-definitions/ - An Automotive-pliant Part is Available Under Separate Datasheet (LM2902Q_LM2904Q) Pin Assignments (Top View) 1OUT 1 1IN- 2 - 1 1IN+ 3 GND 4 + + 8 VCC 7 2OUT - 6...
