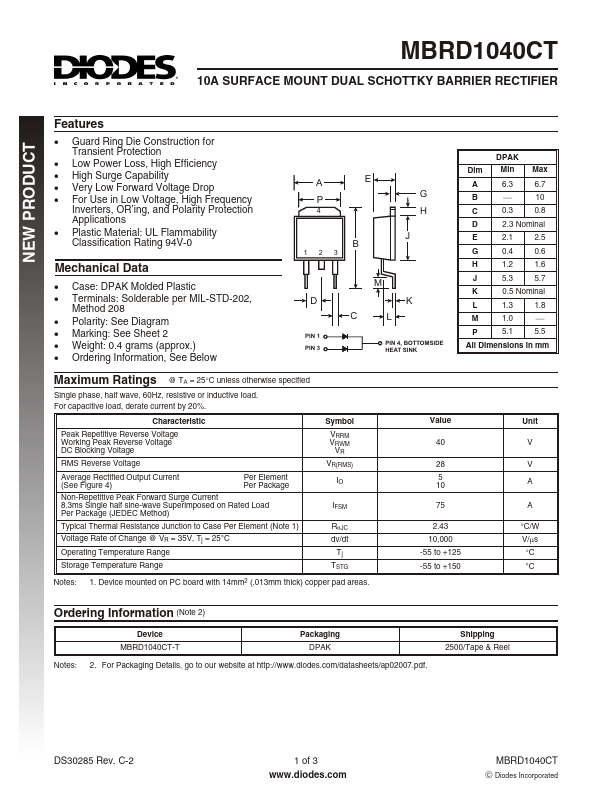

Diodes Incorporated MBRD1040CT
10A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER
| Part No. | MBRD1040CT |
|---|---|
| Datasheet | MBRD1040CT Download |
| Manufacturer |  Diodes Incorporated |
| Description | 10A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER |
| Buy | Stock & Price |
FEATURES
● Guard Ring Die Construction for Transient Protection● Low Power Loss, High Efficiency
● High Surge Capability
● Very Low Forward Voltage Drop
● For Use in Low Voltage, High Frequency Inverters, OR’ing, and Polarity Protection
APPLICATIONS
● Plastic Material: UL Flammability Classification Rating 94V-0MECHANICAL DATA
● Case: DPAK Molded Plastic● Terminals: Solderable per MIL-STD-202, Method 208
● Polarity: See Diagram

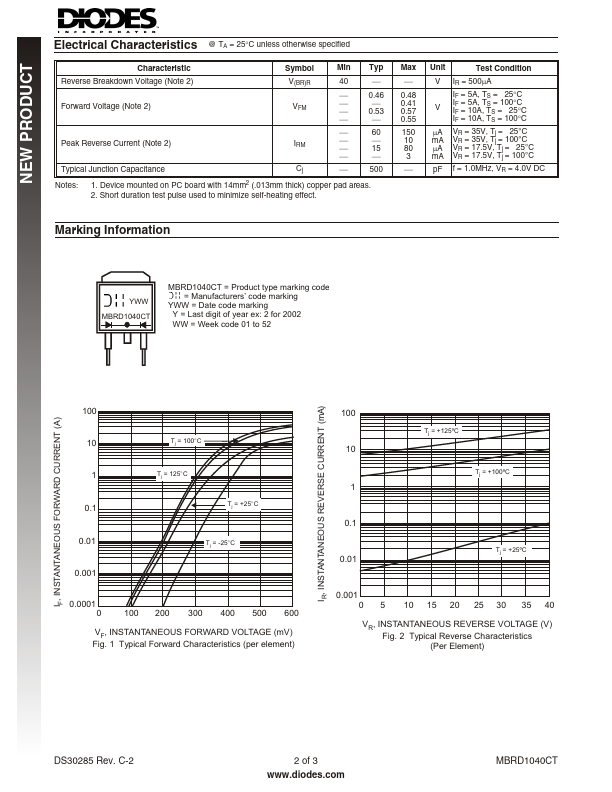

● Marking: See Sheet 2
● Weight: 0.4 grams (approx.)
● Ordering Information, See Below A E P 4 B 123 G H J D PIN 1 PIN 3 M K C L PIN 4, BOTTOMSIDE HEAT SINK DPAK Dim Min Max A 6.3 6.7 B ¾ 10 C 0.3 0.8 D 2.3 Nominal E 2.1 2.5 G 0.4 0.6 H 1.2 1.6 J 5.3 5.7 K 0.5 Nominal L 1.3 1.8 M 1.0 ¾ P 5.1 5.5 All Dimensions in mm

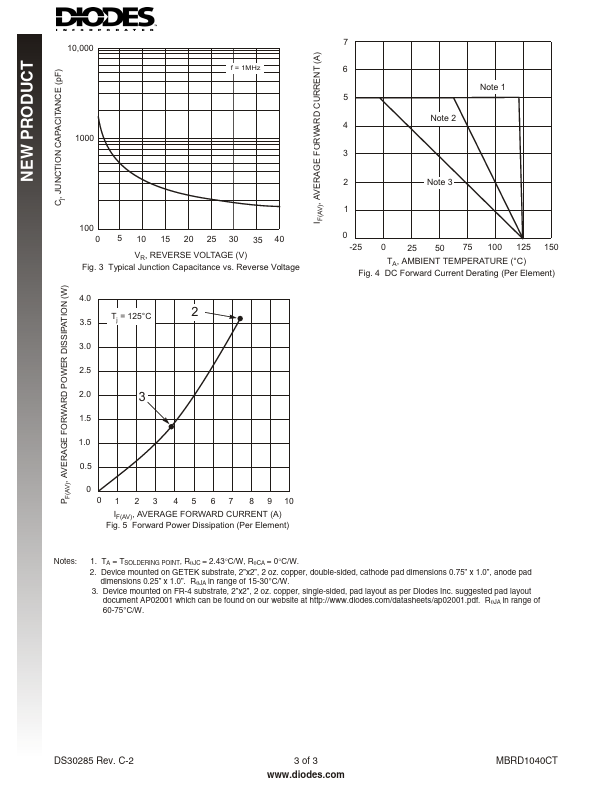

MAXIMUM RATINGS
@ TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking...
