SD101AWS - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Key Features

  • Low Forward Voltage Drop.
  • Guard Ring Construction for Transient Protection.
  • Negligible Reverse Recovery Time.
  • Low Capacitance.
  • Ultra-small Surface Mount Package.
  • Lead Free/RoHS Compliant Version (Note 1).
  • “Green” Device (Note 2) SD101AWS.
  • SD101CWS.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SD101AWS Schottky Barrier Diode GME
SD101AWS SCHOTTKY DIODES WEJ
SD101AWS Small Signal Schottky Diodes MCC
SD101AWS Schottky Diodes LGE
SD101AWS Surface Mount Schottky Barrier Rectifiers SeCoS

Other Datasheets by Diodes Incorporated

Part Number Description
SD101AW SCHOTTKY BARRIER SWITCHING DIODE
SD101A SCHOTTKY BARRIER DIODE
SD101B SCHOTTKY BARRIER DIODE
SD101BW SCHOTTKY BARRIER SWITCHING DIODE
SD101BWS SURFACE MOUNT SCHOTTKY BARRIER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

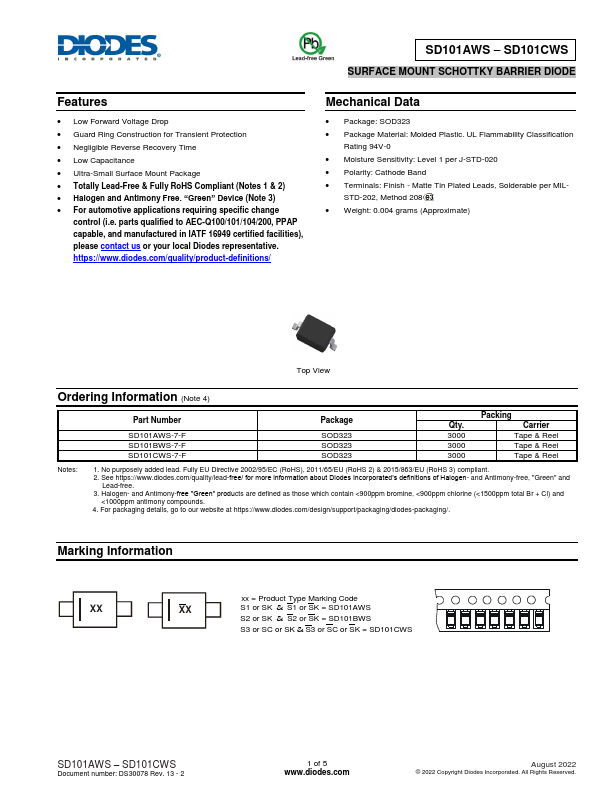

Features • Low Forward Voltage Drop • Guard Ring Construction for Transient Protection • Negligible Reverse Recovery Time • Low Capacitance • Ultra-small Surface Mount Package • Lead Free/RoHS Compliant Version (Note 1) • “Green” Device (Note 2) SD101AWS – SD101CWS SURFACE MOUNT SCHOTTKY BARRIER DIODE Mechanical Data • Case: SOD323 • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Polarity: Cathode Band • Leads: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 • Weight: 0.004 grams (approximate) Top View Ordering Information (Note 3) Notes: Part Number SD101AWS-7-F SD101BWS-7-F SD101CWS-7-F Case SOD323 SOD323 SOD323 1. No purposefully added lead. 2.
