SD101CWS - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Download the SD101CWS datasheet PDF. This datasheet also covers the SD101AWS variant, as both devices belong to the same surface mount schottky barrier diode family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Low Forward Voltage Drop.
  • Guard Ring Construction for Transient Protection.
  • Negligible Reverse Recovery Time.
  • Low Capacitance.
  • Ultra-small Surface Mount Package.
  • Lead Free/RoHS Compliant Version (Note 1).
  • “Green” Device (Note 2) SD101AWS.
  • SD101CWS.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SD101AWS-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SD101CWS Schottky Barrier Diode GME
SD101CWS SCHOTTKY DIODES WEJ
SD101CWS Small Signal Schottky Diodes MCC
SD101CWS Schottky Diodes LGE
SD101CWS Surface Mount Schottky Barrier Rectifiers SeCoS

Other Datasheets by Diodes Incorporated

Part Number Description
SD101CW SCHOTTKY BARRIER SWITCHING DIODE
SD101C SCHOTTKY BARRIER DIODE
SD101A SCHOTTKY BARRIER DIODE
SD101AW SCHOTTKY BARRIER SWITCHING DIODE
SD101AWS SURFACE MOUNT SCHOTTKY BARRIER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

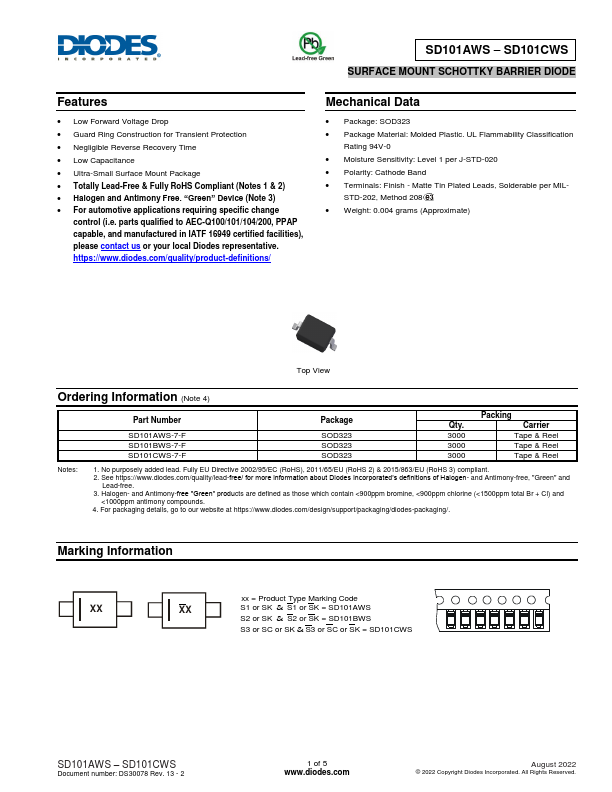

Features • Low Forward Voltage Drop • Guard Ring Construction for Transient Protection • Negligible Reverse Recovery Time • Low Capacitance • Ultra-small Surface Mount Package • Lead Free/RoHS Compliant Version (Note 1) • “Green” Device (Note 2) SD101AWS – SD101CWS SURFACE MOUNT SCHOTTKY BARRIER DIODE Mechanical Data • Case: SOD323 • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Polarity: Cathode Band • Leads: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 • Weight: 0.004 grams (approximate) Top View Ordering Information (Note 3) Notes: Part Number SD101AWS-7-F SD101BWS-7-F SD101CWS-7-F Case SOD323 SOD323 SOD323 1. No purposefully added lead. 2.
