Diodes Incorporated SD24
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.| Part No. | SD24 |
|---|---|
| Datasheet | SD24 Download |
| Manufacturer |  Diodes Incorporated |
| Description | 350W UNIDIRECTIONAL TVS DIODE |
| Buy | Stock & Price |
DESCRIPTION
APPLICATIONS
● Cellular handsets● Portable electronics
● Computers and peripherals
FEATURES
● Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV● Low Channel Input Capacitance
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● An automotive-compliant part is available under separate datasheet (SD24Q)
MECHANICAL DATA
● Package: SOD323● Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208

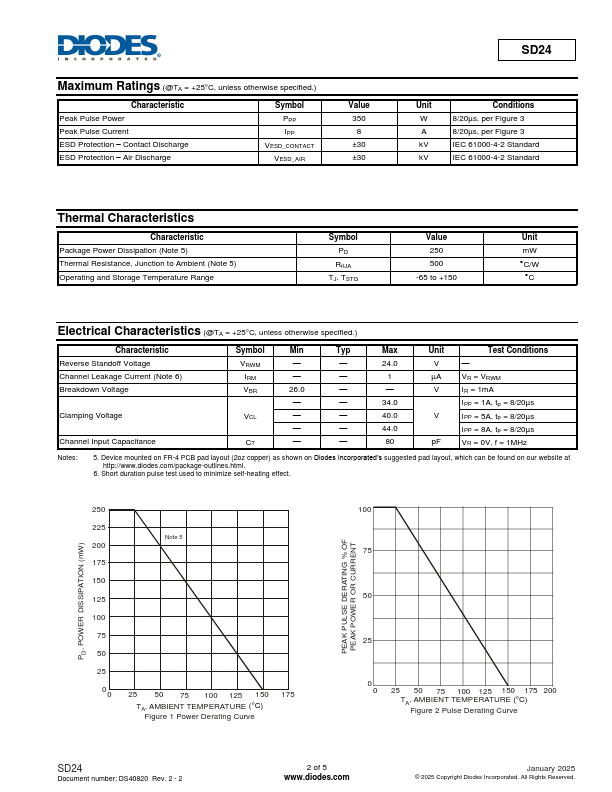

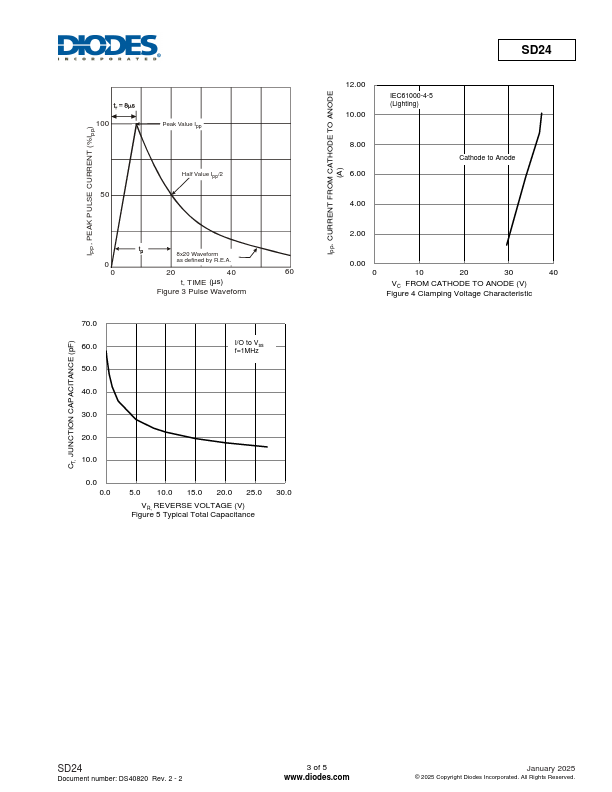

● Weight: 0.004 grams (Approximate) SOD323 Top View Device Schematic Ordering Information (Note 4) Orderable Part Number SD24-7 Package SOD323 Marking PA4 Reel Size (inches) Tape Width (mm) 7 8 Packing Qty. Carrier 3,000 Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
