MMSZ5235C - SMD Planar Zener Diodes

Download the MMSZ5235C datasheet PDF. This datasheet also covers the MMSZ5231C variant, as both devices belong to the same smd planar zener diodes family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • ~ ±2% tolerance of Zener voltage Sharp Zener voltage breakdown Low leakage current Low profile package Compliant to RoHS, REACH, Conflict Minerals 1) WEEE Besonderheiten ~ ±2% Toleranz der Zener-Spannung Scharfer Zenerspannungsabbruch Niedriger Sperrstrom Flache Bauform RoHS Pb ELV Konform zu RoHS, REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) 0.6±0.1 Taped and reeled 3000 / 7“ Gegurtet auf Rolle Type Code see next page Typ-Code siehe nächste Seite Weight.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MMSZ5231C-Diotec.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MMSZ5235C ZENER DIODE JCET
MMSZ5235C Zener Diode MCC
MMSZ5235 ZENER DIODES General
MMSZ5235 Small Signal Zener Diodes Vishay Intertechnology
MMSZ5235 Zener Diodes MCC

Other Datasheets by Diotec Semiconductor

Part Number Description
MMSZ5231C SMD Planar Zener Diodes
MMSZ5232C SMD Planar Zener Diodes
MMSZ5234C SMD Planar Zener Diodes
MMSZ5236C SMD Planar Zener Diodes
MMSZ5237C SMD Planar Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

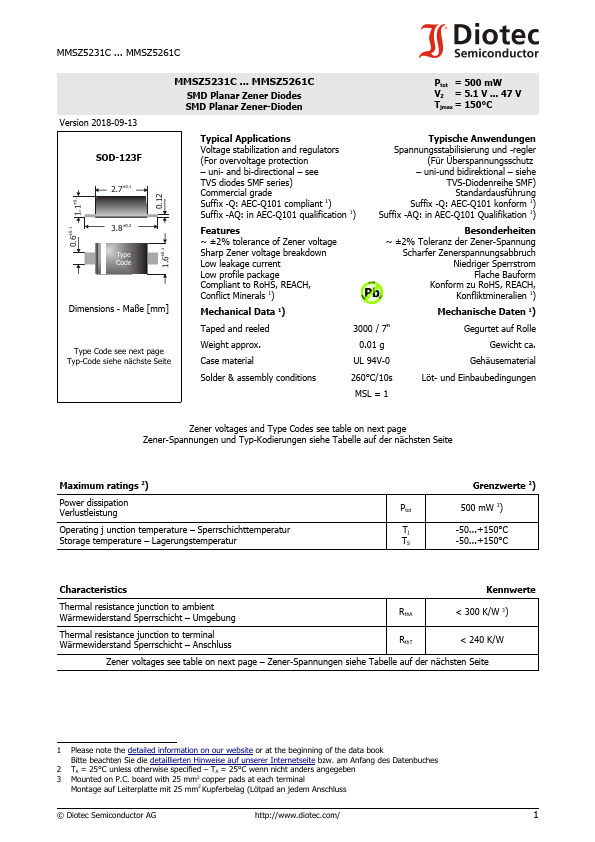

MMSZ5231C ... MMSZ5261C MMSZ5231C ... MMSZ5261C SMD Planar Zener Diodes SMD Planar Zener-Dioden Ptot = 500 mW VZ = 5.1 V ... 47 V Tjmax = 150°C Version 2018-09-13 1.1±0.1 SOD-123F 2.7±0.1 3.8±0.2 Type Code Dimensions - Maße [mm] 0.12 1.6±0.
