MMSZ5260C Datasheet Smd Planar Zener Diodes

Manufacturer: Diotec Semiconductor

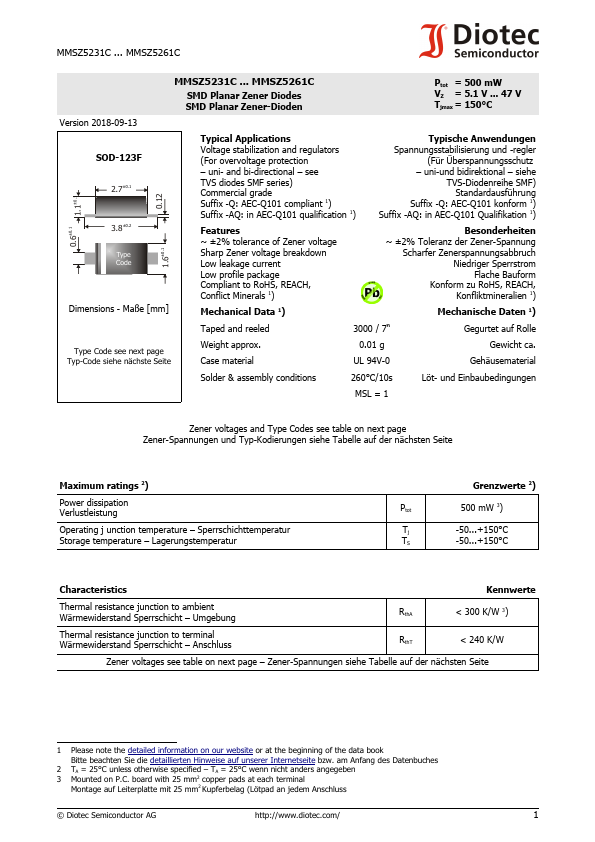

Overview: MMSZ5231C ... MMSZ5261C MMSZ5231C ... MMSZ5261C SMD Planar Zener Diodes SMD Planar Zener-Dioden Ptot = 500 mW VZ = 5.1 V ... 47 V Tjmax = 150°C Version 2018-09-13 1.1±0.1 SOD-123F 2.7±0.1 3.8±0.2 Type Code Dimensions - Maße [mm] 0.12 1.6±0.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • ~ ±2% tolerance of Zener voltage Sharp Zener voltage breakdown Low leakage current Low profile package Compliant to RoHS, REACH, Conflict Minerals 1) WEEE Besonderheiten ~ ±2% Toleranz der Zener-Spannung Scharfer Zenerspannungsabbruch Niedriger Sperrstrom Flache Bauform RoHS Pb ELV Konform zu RoHS, REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) 0.6±0.1 Taped and reeled 3000 / 7“ Gegurtet auf Rolle Type Code see next page Typ-Code siehe nächste Seite Weight.
