Datasheet Summary
PSOT03 ... PSOT36C

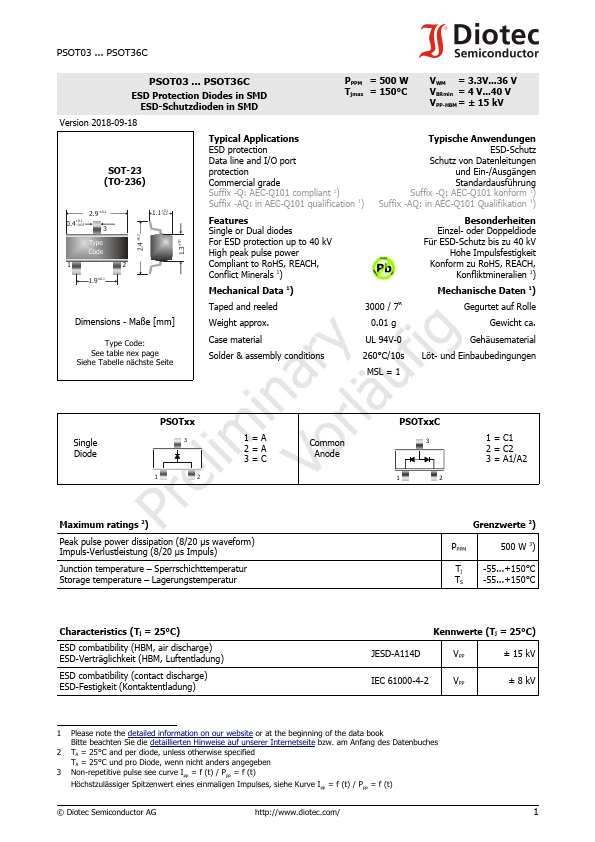

PSOT03 ... PSOT36C ESD Protection Diodes in SMD
ESD-Schutzdioden in SMD
PPPM = 500 W Tjmax = 150°C
VWM = 3 36 V VBRmin = 4 V...40 V VPP-HBM = ± 15 kV
Version 2018-09-18
SOT-23 (TO-236)
0.4+0.1 -0.05
2.9 ±0.1 3
Type Code
1.9±0.1
1.1+0.1 -0.2
2.4 ±0.2 1.3±0.1
Typical Applications ESD protection Data line and I/O port protection mercial grade Suffix -Q: AEC-Q101 pliant 1) Suffix -AQ: in AEC-Q101 qualification 1) Features
Single or Dual diodes For ESD protection up to 40 kV High peak pulse power pliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1)
WEEE
Typische Anwendungen ESD-Schutz
Schutz von Datenleitungen und Ein-/Ausgängen...
